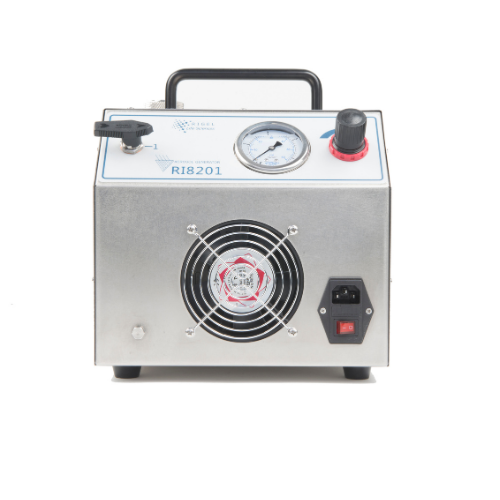

RIGEL RI8201
The Rigel RI8201 Aerosol Generator is designed to be an “All-in-one” instrument. The built-in compressor gives the opportunity to work with the aerosol generator even if there is any external compressor available. Using Laskin nozzles placed within the tank of the instrument, the aerosol is vaporized. It is ideal for the certification of small and medium-sized areas, when low range of airborne concentration are required. The Rigel RI8201 includes rugged stainless-steel construction, large fill port, individual nozzle control, and a 3″ standard sanitary fitting outlet. An 3” hose adapter (included within the unit) is available for introducing the aerosol into positive pressure systems. RI8201 gives its best in RABS, isolators and safety cabinets.
Specifications
| Type of device | Aerosol generator of cold atomized oil produced by Laskin nozzles |
| Field of use | High efficiency filtering systems integrity tests (ISO 14644-3 – Section 3.2.1) in the flow range 50 ÷ 2000 cfm ( 85 ÷3398 m3/h ) |
| Aerosol type | Polidispersed (cold) |
| Atomizers | 2 / 6 Laskin nozzles |
| Aerosol Concentration | Manual regulation: 100μg/l @ 200 cfm 10μg/l @ 2000 cfm |
| Compatible oil type (*) | In accordance with the types indicated in ISO 14644-3 (Section C.6.4): DOP (Dioctyl Phthalate) – PAO (Polyalphaolefin) – DOS (Dioctyl sebacate) – DEHS (di-2-ethylhexyl sebacate) – Shell Ondina EL |
| Oil tank capacity | 2 Litres |
| Oil level | Check window |
| Power supply | 230 V 50-60 Hz 3 A |
| Electrical protection | 2 fuses 5×20 mm 250V F10A |
| Service compressed air | Pressure Max 3 bar (limited by safety valve) |
| Environmental conditions during operation | Temperature 0 °C ÷ + 40 °C Relative Humidity 10 ÷ 90% |
| Storage environmental conditions | Temperature – 20 °C ÷ + 55 °C Relative Humidity 10 ÷ 90% non condensing |
| Case | Aluminum |
| Dimensions (L x P x H) | 390 x 260 x 290 mm |
| Weight | 16.8 kg (dry) |
