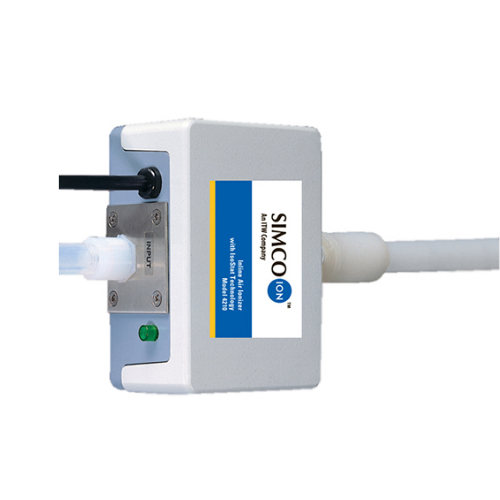

4210 | Gas Ionizer
The Simco-Ion In-line Gas Ionizer Model 4210 delivers exceptional performance when supplied with gas from an ultra-clean source, achieving ionization levels ten times better than Class 3 cleanroom standards. Its design incorporates carefully selected materials and precise control of internal geometry to ensure the ultra-clean delivery of ionized gas. The Model 4210 easily connects to gas delivery manifolds and can ionize either Clean Dry Air (CDA) or nitrogen. Equipped with IsoStat® technology, it provides a steady-state DC ion emission. Ultra-clean emitter points and construction in the u/un models, along with carefully controlled current and geometry, guarantee highly precise and reliable ionization for the most demanding cleanroom environments.
Specifications
| Input Voltage | 120 VAC, 50-60 Hz, approximately 2W; 100/230 VAC models available |
| Discharge | 4210: 10 sec 4210u: 5 sec 4210un: 10 sec (measured through 6” long, 1/4” ID Teflon tube held 6” from the CPM, airflow rate of 2 scfm) |
| Balance | ±25V at specified flow and pressure measured at 6” from CPM; tested in accordance with Standard ANSI/ESD STM3.1-2015 Ionization |
| Ion Emission | IsoStat Technology |
| Emitter | Tungsten or Single-crystal Silicon |
| Cleanroom Class | 4210: ISO 14644-1 Class 5 standards 4210u: ISO 14644-1 Class 3 standards 4210un: ISO 14644-1 Class 3 standards |
| LED Indicator | Green, POWER ON |
| Air Supply | Input: Clean Dry Air (CDA) or Nitrogen Flow: 1.5 cfm (min); maximum set by manifold back pressure Temperature: 250°F (120°C) max, 73°F (23°C); ambient environment Connector: 1/4” NPT female Teflon fittings at both gas input and output Pressure: 10-50 psi safe range; unit is NOT designed to withstand high pressures* |
| Manifold | Teflon tubing with flare fittings for interconnects; nitrogen 3/8” (1 cm) ID tubing; CDA 1/4” (0.6 cm) ID tubing; refer to Simco-Ion Technical Note TN-006, In-line Gas Ionization Considerations 4210 Use and Application Guide Back Pressure: With nitrogen, the limit is 12 psi; and with air (CDA), the limit is 50 psi; measured at the outlet of the 4210 |
| Operating Env | Ambient -4°F to -140°F (-20°C to 60°C) max |
| Mounting | 4-6/32 threaded holes provided; wall and bulkhead mount brackets available |
| Enclosure | Power-coated white aluminum |
| Dimension | 2.38”D x 4.75”L x 3.13”W (6.06 x 12.0 x 7.95 cm) |
| Weight | 2.31 lb (1.04 kg) including fittings and power cord |
| Warranty | Two-year limited warranty |
