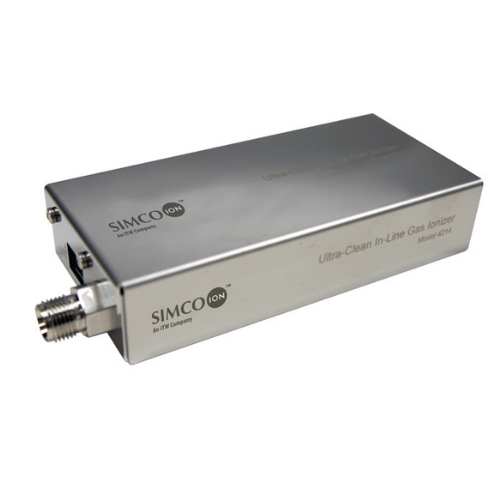

In-Line Gaz Ionizer 4214
Simco-Ions Ultra-clean In-line Ionizer Model 4214 für Stickstoff ist gestaltet um Stickstoff für ultra saubere Halbleiterherstellung und andere hochreine Prozesse und Anwendungen bereitzustellen. Das Model 4214 ionisiert hierbei Stickstoffmoleküle ohne die Notwendigkeit einer starken Spannungsversorgung; Modelle anderer Hersteller können nur Partikel-Kontaminationen im Stickstoff ionisieren. Der Ionisator ermöglicht mit schnellen Entladezeiten von kleiner <10 Sekunden die optimale Neutralisierung von statischen Aufladungen
- Erweiterte ISO Klasse 1
- In-Line Ionisation
- Alarm bei niedriger Ionenabgabe, Spannungsausfall und bei zu niedrigem Gasdurchsatz
- Standby Modus
- Automatische Balanceregelung
- Automatische Abschaltung bei zu niedrigem Gasdurchsatz
- 24 VDC Eingang
Specifications
| Input Voltage | +24 VDC, ±5% @ 0.25 A, 6W (typ) |
| Discharge | Without Manifold: ±1000-100V, <10 sec (typ), measured @ 6” (15.2 cm) to CPM, nitrogen flow rate 1.4 cfm @ 5.3 psi (40 lpm @ 36.5 kPa) With Manifold: ±1000-100V, <100 sec (typ), measured @ 19.6” (49.8 cm) with custom manifold |
| Balance | ±25V or less range with no output manifold, measured @ 6” (15.2 cm) from CPM |
| Ion Emission | High Frequency AC Technology |
| Emitter | Single-crystal Silicon |
| Cleanroom Class | ISO 14644-1 Class 1 (0.1 μm particles) & Extended ISO Class 1 (0.01 μm particles) |
| LED Indicator | Green, POWER; red, ALARM; yellow/blue, WARNING, and LEARN |
| Control System | Microprocessor-controlled ionization, self balancing |
| Air Supply | Input: Nitrogen, minimum purity 99.999% Flow: 1.41 cfm @ 5.3 psi (40 lpm @ 36.5 kPa) min; recommended 3.18 cfm @ 24.8 psi (90 lpm @ 171 kPa); 3.53 cfm @ 30 psi (100 lpm @ 207 kPa), max Temperature: 140°F (60°C), max Connection: Inlet: Swagelok® 316L SST 1/8" FNPT Adapter to 3/8" OD tubing (#SS-600-7-2); Outlet: Internal 1/4” NPT female threaded in ionizer block; optional manifold 1/4” NPT male Filter: Disposable, 99.999% filtration efficiency for 0.01 micron particles |
| Alarm | Low ion output, high voltage power supply failure, low gas flow |
Status Relays 1 & 2 | ±60V @ 0.2A (max) |
| Operating Env | 59-140°F (15-60°C) max (custom manifold per individual specification) |
| Mounting | Two M5 threaded inserts provided on bottom of unit; M5 screws should not exceed 10 mm in length |
| Enclosure | Stainless Steel |
| Dimension | 6.01”L x 2.86”W x 1.26”H (15.2 x 7.26 x 3.20 cm) without manifold |
| Weight | 1.4 lb (0.64 kg) without manifold |
| Warranty | Two-year limited warranty |
