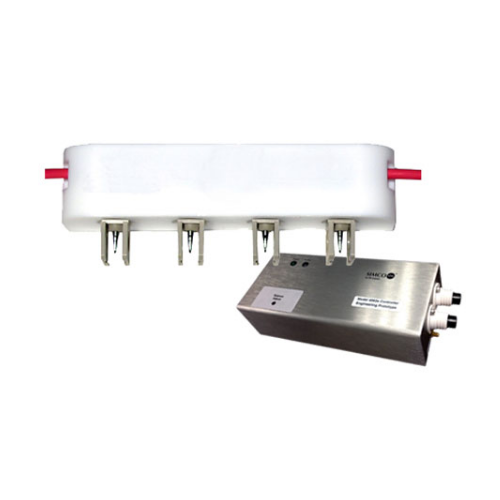

4610TF
The Simco-Ion High Temperature Ionizer Model 4610TF, when paired with the High Temperature Controller Model 4052E, forms a uniquely robust ionization system capable of withstanding both high heat and extreme cold. This combination provides reliable static elimination in environments where other methods fail, making it ideal for demanding production settings that require consistent and effective control of electrostatic charge.
Specifications
| Airflow | 60-100 fpm (18.3-30.5 mpm) recommended |
| Cabling | 30 kV, 13.3’ (4m) / 21.7’ (6m) |
| Discharge* | <3 sec @ 6" (15 cm ) distance between ionizer and CPM <5 sec @ 10” (25 cm) <10 sec @ 18” (45.7 cm) |
| Emitter Points | Four Tungsten alloy or single-crystal silicon points |
| Power | Powered by 4052E controller (connects to the controller via interchangeable HV cable connectors) |
| Temperature | Operating Env: -94°F to 302°F (-70°C to 150°C), max 85% RH (non condensing) |
| Voltage | Output: 8 kVDC |
| Mounting | Two slots (methods varies depending on environment) |
| Enclosure | Teflon body, fins/rivet PEEK |
| Dimensions | 1.5”H x 1.2”W x 4.5”L (3.8 x 3.5 x 11.4 cm) |
| Weight | 4 oz (117g) |
