4612-114

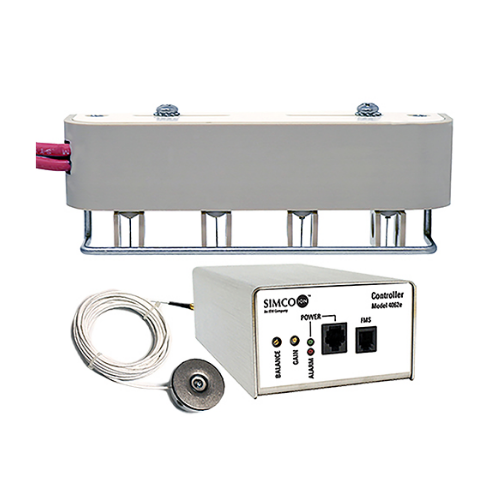

Simco-Ion’s 4612-114 Extreme Temperature Ionization Mini System is engineered for processes that demand performance under extreme temperatures while facing tight space limitations. Measuring just 114 mm in length, the 4612-114 Mini can operate in temperatures ranging from -58°F to 302°F (-50°C to +150°C) while maintaining an excellent balance of better than ±10V. The system can also integrate with a closed-loop feedback controller to ensure that the ionizer’s output is precisely balanced at critical product locations.This Extreme Temperature System provides an ideal solution for maintaining tightly controlled ionization in small test chambers with active robotics and moving parts, even under harsh environmental conditions. Utilizing DC technology and outfitted with either Tungsten or Silicon emitters, it is suitable for ISO 14644-1 Class 6 cleanroom environments. The miniaturized 114 mm design allows installation in confined spaces without sacrificing performance, and an optional air-assisted kit is available to further enhance its capabilities.

Specifications

Input Voltage	±6.5 kV max, supplied by Model 4062e Controller
Discharge1	10 sec (depending on environment) @ 12” (30.5 cm) with 100 fpm gas velocity (±1000-100V)
Balance	±10V (typ) around initial setpoint
Ion Emission	Steady-state DC Technology
Emitter	Tungsten or Single-crystal Silicon
Cleanroom Class	ISO 14644-1 Class 4
Air Supply	Input: Clean Dry Air (CDA) or Nitrogen with a minimum purity of 99.99% Flow: 100 fpm (min) velocity past 4612-114 Ionizer Temperature: 302°F (150°C) max
Alarm	Low input voltage, HV output fault, sensor signal variable/noisy and/or out of range
FMS	Relay contact, rated ±24 VDC @ 0.2A, max 4-20 mA Current output
Operating Env	-58°F to 302°F (-50°C to +150°C) max; 30-60% RH, non-condensing
Mounting	2 mounting slots are provided; methods vary depending on the environment
Enclosure	Ionizer: High temperature PEEK chassis Sensor: PTFE and Stainless Steel
Dimension	Ionizer: 4.50”L x 1.53”H x 1.08”W (11.4 x 38.9 x 2.74 cm) Sensor: 1.75 dia x 0.86”H (4.45 x 2.18 cm)
Weight	Ionizer: 0.75 lb (0.34 kg) Sensor: 0.30 lb (0.136 kg) including cables
Warranty	Two-year limited warranty
