5832

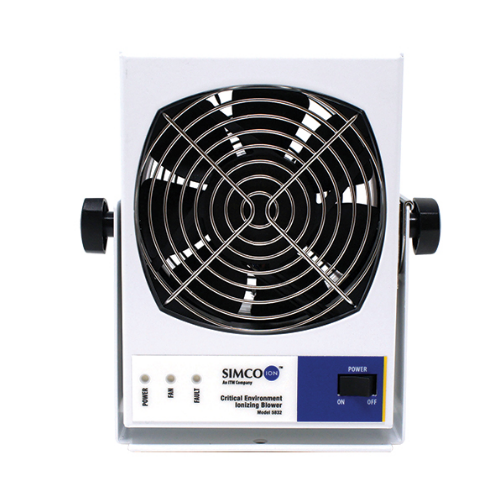

The Simco-Ion Model 5832 Blower is engineered to deliver reliable and rapid static charge control for benchtop workstations and confined spaces, ensuring optimal management of electrostatics while minimizing costs and maximizing protection for ESD-sensitive areas. When paired with an external sensor, the 5832 can maintain a highly precise balance of better than ±1V by adjusting ion output to respond to changes in the environment. Optional integration with a remote sensor or the Novx feedback/control system allows the Model 5832 to provide precisely balanced and directed ionized air exactly where it’s needed, all without consuming valuable workspace.The blower features a higher density of emitter points and internal circuitry designed for environments requiring high-quality ESD protection with a proven, durable design. It achieves a balance of ±3V or better (±1V when used with Novx Inside or Novx System versions) and meets ISO 14644-1 Class 3 cleanliness standards. Additional options include sensor inputs, FMS connectivity, alarms, and management controls. The built-in Auto-Clean system ensures the emitter points remain clean for consistent performance with minimal maintenance.
Specifications
| Input Voltage | 24 VDC, 0.47A max or Simco-Ion P/N 14-21328 |
| Discharge1 | With/Without Collimator: <1 sec @ 12” (30.5 cm), typ Without Collimator: <2 sec @ 24” (61 cm), typ With Collimator: <1.5 sec @ 24” (61 cm), typ |
| Balance | ±3V; ±1V with Novx Inside or Novx System versions |
| Ion Emission | Steady-state DC Technology |
| Emitter | Titanium, 8 per fan |
| Cleanroom Class | ISO 14644-1 Class 3 |
| LED Indicator2 | Green POWER on, red FAN stall, red FAULT with optional AUDIBLE ALARM (two-stage blinking red Fault LED to indicate Warning and Alarm conditions) |
| Control | Power/fan speed DIP switch with 4 speed/velocity settings, balance adjustment, antenna type selection, FMS connections |
| Airflow | 125 cfm (high fan speed) |
| Audible Noise | High fan speed 61 dB (typ), low fan speed 52 dB (typ); measurements taken 12” (30.5 cm) from fan |
| Option | External antenna inputs with FMS connection, audible alarm, angled collimator; Warning: ±3V; Alarm: ±5V on standalone version |
| Ozone | 0.005 ppm (typ) |
| Operating Env | 50-90°F (10-32°C); 30-60% RH, non-condensing |
| Mounting | Tilt Lock Mounting Stand |
| Enclosure | Aluminum chassis with epoxy-polyester powder coat |
| Dimension | 7.27”H x 6.95”W x 2.97”D (18.47 x 17.65 x 7.54 cm) with stand 7.27”H x 6.95”W x 6.11”D (18.47 x 17.65 x 15.5 cm) with angled collimator |
| Weight | 2.20 lb (1.00 kg) without collimator; 2.42 lb (1.10 kg) with angled collimator |
| Warranty | Two year limited warranty |
