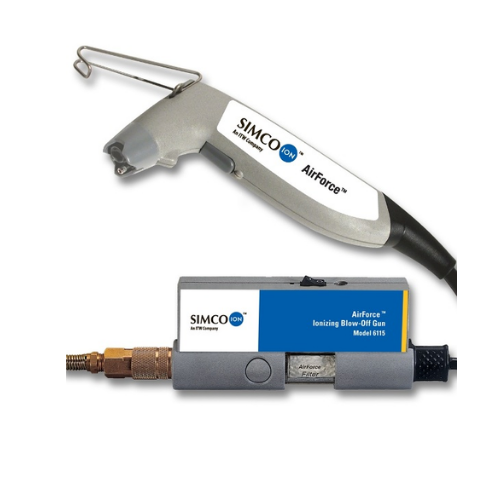

AirForce Air Ionizing Blow-off Gun 6115
The Simco-Ion 6115 Ionizing Gun was developed for the manual removal of particle contamination in particularly sensitive process environments. It is the only ionizing gun on the market with a cleanliness classification according to ISO 14644-1 Class 4, meeting the highest requirements in cleanroom areas. With its powerful blow-off function combined with steady-state DC technology, the system achieves discharge times of less than one second. The integrated IsoStat® technology ensures reliable and uniform ion delivery without external control. The ergonomic design of the gun, made from static-dissipative material, fits comfortably in the hand. The flexible and lightweight air hose with integrated low-voltage cable allows safe and effortless handling without cumbersome high-voltage cables. For easy maintenance, the gun is equipped with a replaceable emitter tip and a quick-change filter. The 6115 Ionizing Gun is particularly suitable for demanding applications in flat-panel display manufacturing, electronics production, life sciences environments, and the semiconductor industry – both in back-end and front-end areas – providing an effective solution for controlling electrostatic charge and minimizing contamination.
Specifications
| Input Voltage | 24 VAC, 10W powered from a wall transformer |
| Discharge | 1.0 sec @ 6” (15.2 cm), 30 psi; ±1,000 to 100V |
| Balance | ±30V @ 6” (15.2 cm), 30 psi |
| Ion Emission | IsoStat Technology |
| Emitter | Tungsten |
| Cleanroom Class | ISO 14644-1 Class 4 |
| LED Indicator | Green ON both console and gun |
| Air Supply | Input: 20-65 psi, Clean Dry Air (CDA) or Nitrogen Blow-off Force: 0.041 kg @ 30 psi; measured @ 3” (7.62 cm) from a 2” (5.08 cm) dia. target Connection: 1/4” male industrial interchange quick disconnect Hose: Static-dissipative polyurethane, 3/8” outside diameter; 8 ft (2.4m)/65 psi Filter: 99.9% efficient, 0.01 micron or larger air particles; 99.9% coalescing efficiency |
| Audible Noise | 70 dBA @ 1m, 30 psi |
| EMI | 29 dbµV; average level 100 KHz to 1.1 MHz |
| Ozone | <0.005 ppm (typ) |
| Mounting | Metal mounting plate attaches to back of console |
| Enclosure | Gun/Console: Static-dissipative polycarbonate (Gun Hanger 302 Stainless Steel) Optional mounting stand for hands-free operation |
| Dimension | Gun: 8.0”L x 3.1”W x 1.0”D (20.3 x 7.94 x 2.54 cm) Console: 8.2”L x 3.0”W x 1.7”D (20.9 x 7.59 x 4.29 cm) |
| Weight | Gun: 0.75 lb (0.34 kg) with 8 ft (2.4m) air hose Console: 0.72 lb (0.33 kg) |
| Warranty | 2 year limited warranty |
