775 Fieldmeter

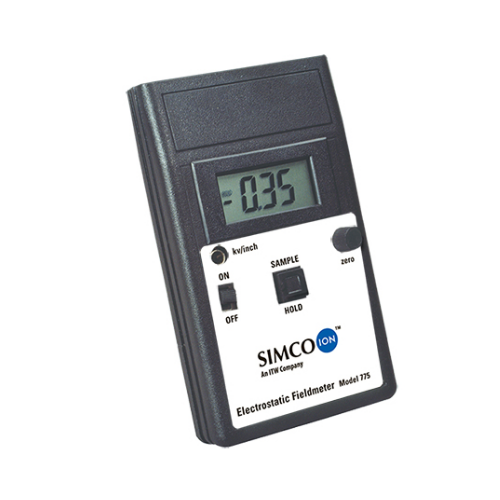

The pocket-sized Simco-Ion Model 775 Handheld Electrostatic Fieldmeter is designed to locate and measure static charge potentials on product, people, equipment and packaging. The Model 775 Fieldmeter uses a non-contacting, chopper stabilized field sensor and a ranging light mechanism to ensure correct measurements of electrostatic fields in all areas—even those using air ionization.
- Digital display
- Distance ranging lights
- Chopper-stabilized circuit
- SAMPLE and HOLD functions
- Battery powered, pocket-sized meter
- Analog output
Specifications
| Battery | 9V alkaline battery included, battery life is excess of 40 hours |
| Output | Analog output through miniature jack, 1V corresponds to 10 kV |
| Range | ±0.00 to 19.99 kV @ 1” (2.54 cm), higher voltages may be measured at distances >1" |
| Accuracy | ±5%, chopper stabilized (accuracy unaffected by air ionization), least significant digit of display indicates tens of volts |
| Response | 5 Hz at analog output, digital display updates 3 times per second |
| Display | 3-1/2 digits, 0.4” (1.02 cm) digit height |
| LCD Indicator | HOLD, BAT (low battery), automatic polarity |
| Control | ON/OFF side-switch, SAMPLE/HOLD push-button, ZERO control |
| Ground | Grounded through conductive case, snap-fastened ground strap provided |
| Operating Env | 0-104ºF (0-40ºC) |
| Enclosure | Conductive case |
| Dimension | 4.15"L x 2.40"W x 0.86"D (10.5 x 6.10 x 2.18 cm) |
| Weight | 0.31 lb (0.142 kg) with battery |
| Warranty | Two-year limited warranty |
