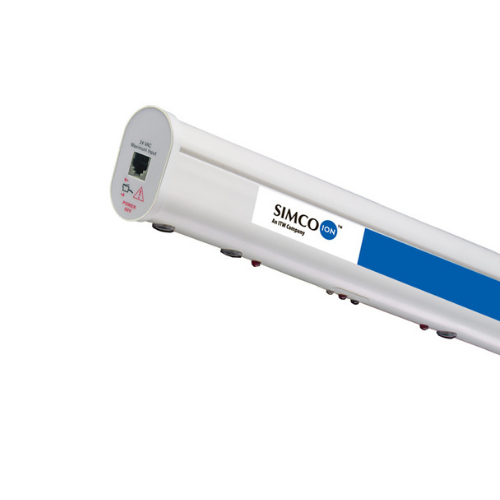

Standalone Ionizing Bar 5225S
The Standalone Digital AeroBar Model 5225S ionizing bar delivers high performance and can be seamlessly integrated into existing operational processes. All parameters are stored directly in the AeroBar, eliminating the need for an external controller. With the ability to configure a wide range of parameters individually for each AeroBar, the device ensures that ionization is precisely tailored to the specific requirements of each process.The AeroBar 5225S operates in both pulsed DC and steady-state DC modes, providing a consistent and stable ion output. The device is available in various lengths, including three specialized lengths for use in EFEMs (Equipment Front-End Modules), making it a flexible solution for diverse applications requiring precise ionization. Additionally, the AeroBar features continuous ion current monitoring and alarm outputs, allowing immediate response to deviations from setpoints. Its single-crystal silicon emitter tips provide extremely clean performance without the risk of wafer contamination from dopants or metal ions.Thanks to its ability to deliver a uniform and optimal performance at all times, along with fine-tuning of ionization according to individual static requirements, the AeroBar 5225S ensures stable and controlled ion output suitable for a wide range of applications across various environments.
Specifications
| Voltage | Input: 24 VAC, 50/60 Hz, 1W (typ) Output: 0-20 kVDC, ±10% for each polarity on an individual AeroBar; positive or negative output levels can be adjusted separately with IR Handheld Remote Model 5570 |
| Output Current | <15 µA, current and voltage limited |
| Connector | RJ-11 modular jack receptacles |
| Regulation | Output and balance stability is achieved by independently regulating the ion emission current of each polarity at each ionizer |
| Timing | Both on/off timing for each polarity are settable from 0-10 sec @ 0.1 sec increments; LEDs on the bar indicate the polarity of the ion emission |
| Ion Emission | Pulse DC, Steady-state DC, or standby |
| Emitter | Single-crystal Silicon or Titanium, replaceable |
| Cleanroom Class | ISO 14644-1 Class 1 (Single-crystal Silicon emitter) ISO 14644-1 Class 3 (Titanium emitter) |
| LED Indicator | Individual red flash ON for each polarity; middle red flashes rapidly when in ALARM, all 3 blink at once when COMMUNICATION occur |
| Ozone | <0.005 ppm |
| EMI | Below background level |
| Alarm | Alarm activates when the bar is no longer able to maintain the preset ion output level; alarm is displayed visually by a red LED in the middle of the ionizer chassis; settable threshold alarm limits for predictive maintenance |
| Maintenance | Annual, semi-annual or quarterly emitter point cleaning depending on process sensitivity and presences of AMCs in environment |
| Enclosure | ABS plastics, fire retardant |
| Dimension | 2.1”H x 1.2”W x 22.4 / 28.4 / 35.7 / 44.4 / 55.6 / 64.4 / 75.5 / 84.4”L (5.3 x 3.1 x 56.9 / 72.1 / 90.7 / 112.8 / 141.2, 163.6 / 191.8 / 214.4 cm) |
| Weight | 1.13 lb (0.51 kg) for a 22” (55.88 cm) bar (approx. 6 oz per additional ft/0.17 kg per additional 30.5 cm) |
| Warranty | Two-year limited warranty |
| Certification | SEMI F47 |
