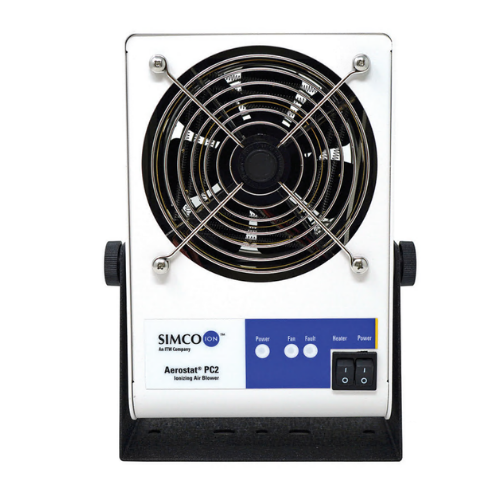

PC2 Compact Simco-Ion benchtop blower for static discharge

Aerostat PC2

The lightweight and compact Aerostat® PC2 desktop blower from Simco-Ion features an integrated point cleaner and excels with its precise targeting of the work surface, delivering outstanding ionization and discharge performance. The airflow is sufficient to reliably control static charges up to 1.5 meters above the desk surface. The mobile ionizer is ideal for neutralizing electrostatic charges at workstations and in service areas. It is equipped with a three-speed blower and a switchable heating element. The ionization is based on high-voltage micropulse AC technology, providing fast and effective discharge. The blower offers optimal protection against the destructive effects of ESD by preventing electrostatic buildup and removing contaminants from surfaces. Built-in cleaning brushes for the emitter electrodes ensure minimal maintenance effort, as does the compact footprint. Its compact and quiet design allows unobtrusive use. The device is balanced to 0±10V, features local alarm LEDs, a connection to the Facility Monitoring System (FMS), a built-in emitter point cleaner, and can optionally be equipped with an audible alarm. Additionally, it meets the technical requirements of DIN EN 61340-5-1.

Specifications

Input Voltage

100-230 VAC, 50/60 Hz, 0.2A, 10W max, fuse 0.63A 250V Slo-Blo

120V w/Heater: 100-120 VAC, 50/60 Hz, 2.0A, 250W, fuse 2.5A 250V Slo-Blo

220V w/Heater: 220-230 VAC, 50/60 Hz, 1.0A, 250W, fuse 1.6A 250V Slo-Blo

Discharge2.0 sec @ 12” (30.5 cm); 1000-100V fan high
Balance0 ±10V (typ)
Coverage12”W x 48”L (30.5 x 121.9 cm) area
Ion EmissionMicropulse (μPulse) Technology
EmitterStainless Steel
Cleanroom ClassISO 14644-1 Class 6 (heater off)
LED IndicatorGreen POWER on, Red FAN alarm, Red FAULT alarm
ControlPower ON/OFF, fan speed LOW/MEDIUM/HIGH, optional Heater ON/OFF
Air Supply

Volume: 129 cfm (fan high)

Speed2: 370 fpm @ 12", 240 fpm @ 24", 164 fpm @ 36", 120 fpm @ 48" (fan high)

Filter: 30 ppi open cell foam filter with bracket (optional)

Audible AlarmFault and Fan stall (optional)
Audible Noise61 dB (fan low), 64 dB (fan high); measured 24” (61.0 cm) in front of blower
ConnectorRJ-9 4P/4C receptacle, relay contact rated ±24 VDC @ 0.2A max
Ozone<0.05 ppm; measured 12” (30.5 cm) in front of blower
Operating Env50-95°F (10-35°C); 30-60% RH, non-condensing
MountingPowder-coated aluminum stand with skid resistant rubber feet
EnclosurePowder-coated aluminum
Dimension9.09”H x 6.81”W x 3.29”D (23.1 x 17.3 x 8.35 cm) with stand
Weight2.8 lb (1.25 kg) with stand & skid resistant rubber feet
WarrantyTwo-year limited warranty
