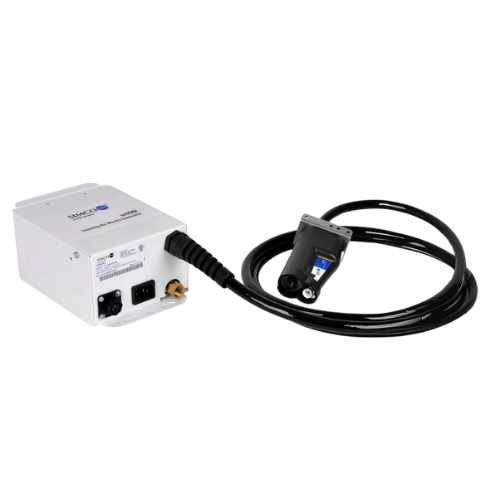

Simco-Ion Compressed Orion Air Ionising Nozzle & Controller for static discharge

orION

The orION compressed air ionizing nozzle from Simco-Ion, Technology Group combines high blow pressure capability with rapid removal of electrostatic surface charges. The nozzle ensures reliable balance stability better than ±15V. A easily replaceable 0.01-micron particle filter is positioned at the air outlet of the nozzle to ensure that clean air is delivered to sensitive products. This nozzle and cable arrangement is compact, allowing effective use in tight environments. The nozzle provides a powerful gas jet that quickly and effectively neutralizes charges while performing a cleaning function. It is equipped with an integrated filter that ensures contamination-free gas discharge, providing a high level of confidence in clean air supply. The ionization balance can be adjusted both at the nozzle and at the controller, allowing user-friendly customization. This is particularly advantageous for applications in confined spaces where rapid responses are required. Remote control of the ionization and nozzle gas flow offers additional convenience and flexibility, enabling operation from the most comfortable position. The orION nozzle allows optimal balance adjustment, making it ideal for a variety of applications that require rapid and effective charge neutralization and blow-off cleaning.

Specifications

Input Voltage120 VAC, 60 Hz, 0.2A; 230 VAC, 50 Hz, 0.1A
Discharge

<2 sec @ 6” (15.2 cm), 30 psi (±1000-100V)

<1 sec @ 2” (5.08 cm), 60 psi (±1000-100V)

Balance0V ±15V
Cleanroom ClassISO 14644-1 Class 5
Air Supply

Input: Clean Dry Air, Nitrogen, or CO2

Pressure: 100 psi (7 bar) max; pressure relief in nozzle complies with OSHA requirements

Flow: 2.4 scfm @ 30 psi (2 bar); 4.6 scfm @ 60 psi (4 bar); 7.4 scfm @ 100 psi (7 bar)

Connection: 1/4” NPT (female)

Filter: 0.01-micron rating

Audible Noise76 dB @ 30 psi (2 bar); 89 dB @ 60 psi (4 bar); 97 dB @ 100 psi (7 bar); measured 24” (61.0 cm) from nozzle)
Connector4 position, keyed circular
Ozone<0.5 ppm measured @ 12" (30.5 cm)
Operating Env32-104°F (0-40°C); 30-70% RH, non-condensing
DimensionNozzle: see dimensional drawing
Weight

Nozzle: 0.41 lb (0.185 kg)

Air Hose: 0.08 lb/ft (0.115 kg/m)

Warranty2 year limited warranty
