QuadBar™ 4630

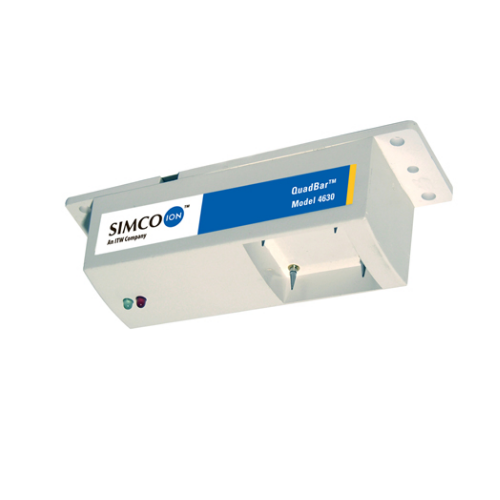

Simco-Ion’s QuadBar 4630 Ionizer is the first corona ionizer to provide safe, effective static charge control in the ambient air inside a process chamber. Its unique quadropole configuration ensures effective ionization as close as 3 inches (7.6 cm) from the product. The 4630’s compact size is designed to fit easily into the tight confines of any process equipment, and its ability to run on 24 VDC input power means it can connect to a tool’s power source.
- Quadropole configuration with IsoStat® Technology
- Compact size
- 24 VAC or 24 VDC operation
- Available with Single-crystal Silicon emitter points
- Alarm output to FMS or process tool controller
Specifications
| Input Voltage | 24 VAC, 35 mA via 24 VAC Transformers (P/N 33-14xx-01, where xx = 21, 31, 34, 46 ); or 24 VDC via tool power or P/N 33-1440-01; or Model 4030 Controller, up to 16 QuadBar’s (max) |
| Discharge | <30 sec @ 12” (30.5 cm) directly under the emitter points with airflow (80-100 fpm) |
| Balance | ±50V @ 6” (15.2 cm) and 12” (30.5 cm) directly under emitter points with airflow (80-100 fpm) |
| Ion Emission | Steady-state DC Technology |
| Emitter | Single-crystal Silicon |
| Cleanroom Class | ISO 14644-1 Class 1 when power with 24 VDC ISO 14644-1 Class 2 when power with 24 VAC |
| LED Indicator | Green POWER; red ALARM |
| Coverage | 12” x 12” (30.5 x 30.5 cm |
| Airflow | 80-100 fpm recommended |
| Status Output | Via Model 5090 FMS Interface attachment, or through Model 4030 Controller signals OK or system failure |
| Operating Env | 59-122°F (15-50°C) recommended; 30-60%, RH (non-condensing) |
| Daisy-chain | Up to 4 units via transformer or up to 16 QuadBar’s via Model 4030 Controller |
| Mounting | Can be mounted to any process tool or flowhood using four #6 screws |
| Enclosure | ABS |
| Dimension | 1.4”H x 1.3”W x 4.5”L (3.56 x 3.30 x 11.4 cm) with flange |
| Weight | 0.22 lb (0.10 kg) |
| Warranty | Two year limited warranty |
