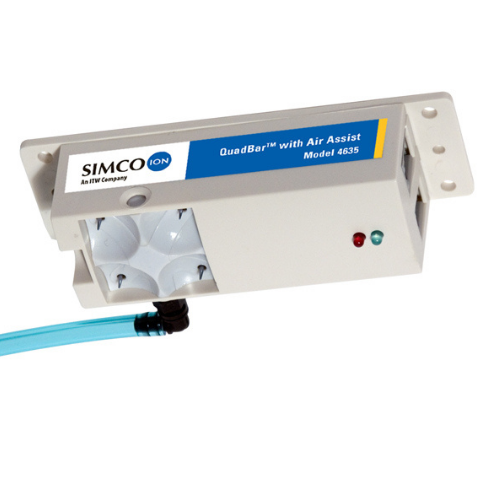

Simco-Ion 4635 Quadbar for static discharge

QuadBar 4635

Simco-Ion’s QuadBar™ Ionizer with Air Assist Model 4635 provides effective static ontrol in a small format. The Model 4635 offers two air assist cartridge design options. Each utilizes a cross-channel air cartridge built around the emitter points that provides optimal air distribution with minimal field voltage.

  • Air assist cartridge design with cross-channel air delivery; two cartridge design options
  • Rotatable cartridge design
  • Quadropole configuration with IsoStat technology
  • Compact size
  • Single-crystal Silicon emitter points
  • Alarm output to FMS or process tool controller

Specifications

Input Voltage

24 VAC, 35 mA via 24 VAC Transformers (P/N 33-14xx-01, where xx = 21, 31, 34, 46 );

or 24 VDC via tool power or P/N 33-1440-01;

or Model 4030 Controller, up to 16 QuadBar’s (max)

DischargeStandard Cartridge: <15 sec @ 12” (30.5 cm) directly under emitter points with 15 lpm (min) purging gas airflow Jet Cartridge: <6 sec @ 12” (30.5 cm) directly under emitter points with 15 lpm (min) purging gas airflow
Balance±50V @ 6” & 12” (15.2 & 30.5 cm) directly under the emitter points
Ion EmissionSteady-state DC Technology
EmitterSingle-crystal Silicon
Cleanroom Class

ISO 14644-1 Class 1 when power with 24 VDC

ISO 14644-1 Class 2 when power with 24 VA

LED IndicatorGreen POWER; red ALARM
Coverage12” x 12” (30.5 x 30.5 cm) @ 12” (30.5 cm)
Air Supply

Input: Clean Dry Air (CDA) or Nitrogen

Flow: 0-25 lpm @ 0-7 psi

Connection: 0.15” (0.38 cm) OD tubing with 2 micron filter or better

Status OutputVia Model 5090 FMS Interface attachment, or through Model 4030 Controller signals OK or system failur
Operating Env59-122°F (15-50°C) recommended; 30-60%, RH (non-condensing)
Daisy-chainUp to 4 units via transformer or up to 16 QuadBar’s via Model 4030 Controller
MountingCan be mounted to any process tool or flowhood using four #6 screws
EnclosureABS, polycarbonate air-assist cartridges, mylar & stainless steel labels
Dimension

1.42”H x 1.32”W x 4.5”L (3.61 x 3.35 x 11.4 cm) with flange

Air connection elbow on the side, width 1.92” (4.88 cm)

Air connection elbow on the end, ionizer body length 3.9” (9.91 cm)

Weight0.24 lb (0.11 kg)
WarrantyTwo-year limited warranty
