Top Gun™ 3

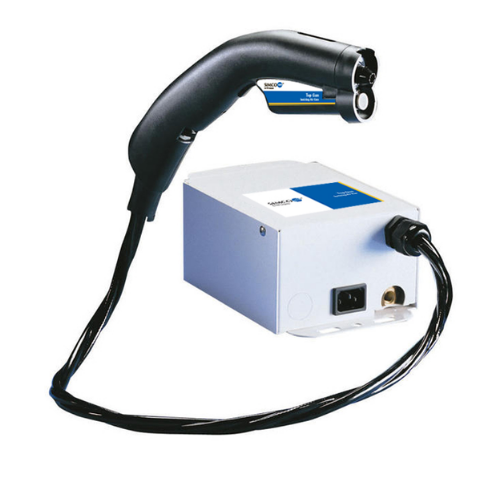

The Simco-Ion Top Gun ionization air gun is a high-performance ionizing air gun designed for a wide range of applications. It is set to a balanced voltage of 0±15V and provides high blow-off force with low air consumption, ensuring high cleaning efficiency and rapid static charge neutralization. The Top Gun features a lightweight, ergonomic design that allows for comfortable handling. It is equipped with an adjustable airflow valve, enabling precise control of the airflow. The electrically balanced ion output ensures reliable ionization. An integrated, replaceable filter nozzle allows for easy maintenance of the air gun. Additionally, the Top Gun includes an ionization indicator that visually signals the operational status. For automated assembly, the Top Gun is also available with an optical sensor that automatically activates the gun when an object enters the detection area. The Top Gun with Sidekick allows for hands-free operation and flexible positioning during assembly and production processes. A foot pedal controls both ionization and airflow, reducing compressed air costs and extending the ionizer’s service life.
Specifications
| Input Voltage | 120 VAC, 60 Hz, 0.2A; 230 VAC, 50 Hz, 0.1A |
| Discharge | 1.3 sec @ 6” (15.2 cm), 30 psi (±1000-100V) 0.5 sec @ 2” (5.08 cm), 60 psi (±1000-100V) |
| Balance | 0±15V |
| Cleanroom Class | ISO 14644-1 Class 5 |
| Blow-off Force | 0.4 lb @ 100 psi, 2” diameter target 3” from the gun |
| Air Supply | Input: 100 psi max; Clean Dry Air (CDA) or Nitrogen Flow: 2.4 scfm @ 30 psi (68 lpm, 2 bar); 4.6 scfm @ 60 psi (130 lpm, 4 bar); 7.4 scfm @ 100 psi (210 lpm, 7 bar) Pressure: Pressure relief in nozzle complies with OSHA requirements Filter: 0.01 micron rating; replacement filters available Connection: 1/4” NPT (female) Air Hose: 7’ or 14’ standard, 5’ or 14’ with optical sensor (integral to gun & controller) |
| Audible Noise | 76 dbA @ 30 psi (2 bar) input; 89 dbA @ 60 psi (4 bar) input 97 dbA @ 100 psi (7 bar) input; measured 24” (61.0 cm) from nozzle |
| Ozone | 0.001 ppm; measured 18” (45.7 cm) from gun, operation @ 15 psi (1 bar) |
| Operating Env | 32-104°F (0-40°C); 30-60% RH, non-condensing |
| Enclosure | Gun: Static Dissipative Polycarbonate/ABS blend Air Hose: Static Dissipative Polyurethane |
| Dimension | See the dimensional drawing |
| Weight | Gun: 0.41 lb (0.185 kg); Air Hose: 0.08 lb/ft (0.115 kg/m) |
| Warranty | 2 year limited warranty |
Control Module | |
| Power | 120 VAC, 50/60 Hz, .10A, 230 VAC, 50/60 Hz, .05A |
| Pressure | Clean Dry Air (CDA) or Nitrogen 1/4” NPT connector, female (100 psi/7 bar max) |
| Enclosure | Powder-coated steel |
| Dimension | 7.87"H x 5.12"W x 3.37"D with flanges (19.9 x 13.0 x 8.56 cm) |
| Weight | 6.0 lb (2.72 kg) |
