Top Gun Sidekick

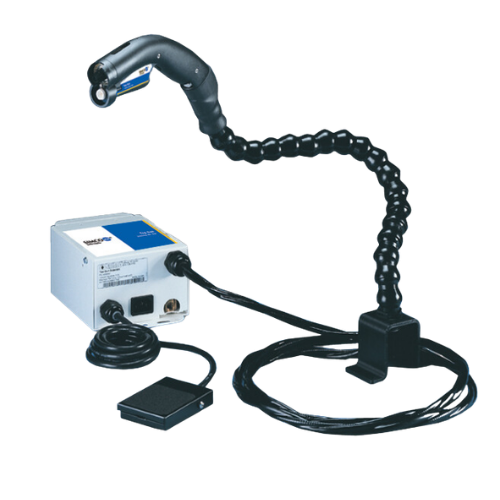

The Top Gun with Sidekick offers hands-free operation and flexible positioning during assembly and manufacturing processes. A foot pedal controls both ionization and airflow, which reduces compressed air costs and extends the life of the ionizer. The flexible gun mount allows the operator to focus the ionized airflow where it is needed. The stand includes a steel bracket for easy bench-top mounting.
• Fully adjustable 18-inch neck focuses the ionized airflow
• Tabletop bracket provides easy mounting.
Specifications
| Input Voltage | 120 VAC, 60 Hz, 0.2A; 230 VAC, 50 Hz, 0.1A |
| Discharge | 1.3 sec @ 6” (15.2 cm), 30 psi (±1000-100V) 0.5 sec @ 2” (5.08 cm), 60 psi (±1000-100V) |
| Balance | 0±15V |
| Cleanroom Class | ISO 14644-1 Class 5 |
| Blow-off Force | 0.4 lb @ 100 psi, 2” diameter target 3” from the gun |
| Air Supply | Input: 100 psi max; Clean Dry Air (CDA) or Nitrogen Flow: 2.4 scfm @ 30 psi (68 lpm, 2 bar); 4.6 scfm @ 60 psi (130 lpm, 4 bar); 7.4 scfm @ 100 psi (210 lpm, 7 bar) Pressure: Pressure relief in nozzle complies with OSHA requirements Filter: 0.01 micron rating; replacement filters available Connection: 1/4” NPT (female) Air Hose: 7’ or 14’ standard, 5’ or 14’ with optical sensor (integral to gun & controller) |
| Audible Noise | 76 dbA @ 30 psi (2 bar) input; 89 dbA @ 60 psi (4 bar) input 97 dbA @ 100 psi (7 bar) input; measured 24” (61.0 cm) from nozzle |
| Ozone | 0.001 ppm; measured 18” (45.7 cm) from gun, operation @ 15 psi (1 bar) |
| Operating Env | 32-104°F (0-40°C); 30-60% RH, non-condensing |
| Enclosure | Gun: Static Dissipative Polycarbonate/ABS blend Air Hose: Static Dissipative Polyurethane |
| Dimension | See the dimensional drawing |
| Weight | Gun: 0.41 lb (0.185 kg); Air Hose: 0.08 lb/ft (0.115 kg/m) |
| Warranty | 2 year limited warranty |
Control Module | |
| Power | 120 VAC, 50/60 Hz, .10A, 230 VAC, 50/60 Hz, .05A |
| Pressure | Clean Dry Air (CDA) or Nitrogen 1/4” NPT connector, female (100 psi/7 bar max) |
| Enclosure | Powder-coated steel |
| Dimension | 7.87"H x 5.12"W x 3.37"D with flanges (19.9 x 13.0 x 8.56 cm) |
| Weight | 6.0 lb (2.72 kg) |
