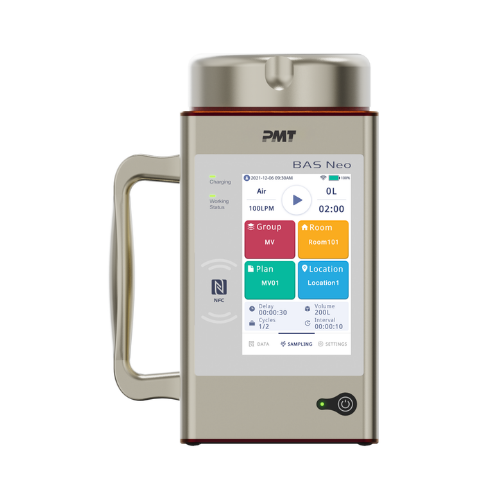

PMT® BAS NEO - Bioaerosol Sampler
The BAS Neo BioAerosol Sampler is a next-generation microbial air sampling system designed for high-precision environmental monitoring in pharmaceutical cleanrooms, biotechnology facilities, and sterile manufacturing environments. Built to meet stringent GMP and ISO 14698-1 requirements, it ensures reliable detection and collection of airborne microorganisms in critical controlled areas. Featuring an advanced impaction-based sampling mechanism, the BAS Neo delivers consistent and accurate air sampling performance, ensuring high reproducibility across different operational conditions. Its optimized airflow design allows efficient microbial capture onto standard agar media plates, supporting both routine monitoring and validation processes. The system is engineered for flexibility, offering multiple sampling modes including manual, continuous, and cyclic operation. This enables users to adapt sampling strategies to specific process requirements, from spot checks to full production batch monitoring. Its intuitive interface and smart control system simplify configuration, reducing operator workload while improving data accuracy and traceability. Designed with cleanroom compatibility in mind, the BAS Neo features a compact, ergonomic and robust housing, resistant to disinfectants commonly used in pharmaceutical environments. It integrates seamlessly into contamination control strategies and can be used as a standalone unit or within a broader environmental monitoring network. With reliable performance, user-friendly operation, and compliance with pharmaceutical standards, the BAS Neo enhances contamination risk management, supports regulatory compliance, and strengthens overall environmental monitoring programs in critical manufacturing zones. Third party validated to meet the requirements of ISO 14698-1 for microbial contamination control in cleanrooms and BS EN 17141 for Physical and Biological Efficiency.
Specifications
| Parameter | Description | Parameter | Description |
| Flow Rate Options | 100LPM ±3%; 200LPM ±3% | Battery | 10.8V, 6800mAh rechargeable lithium battery |
| Flow Rate Control | Built-in mass flow meter | Communication | USB, WIFI |
| Sampling Plan | 20,000 groups, 20,000 rooms, 500 locations for each room, up to 20,000 locations | Application Extension | Connect with the Airborne Particle Counter (APC) and BioAerosol Monitoring System (BAMS) to collect contaminated samples in real time |
| Sampling Volumes | 1-6,000L | Data Storage | 20,000 sets of records |
| Delay | 0-23 hours 59 minutes 59 seconds | Alarm | LED lighting and beep |
| Interval | 00:00:00.5 seconds-23 hours 59 minutes 59 seconds | Display | 5" capacitive touch screen |
| External Surface | Anodized Aluminum | Language | English, Chinese |
| Power | AC 100-240V, 50 Hz/60 Hz | Calibration Frequency | Annual calibration is recommended |
| Sampling Head | Φ0.60 mm*280 holes (100L/min) Φ0.70mm*400 holes (200L/min) (Anodized Aluminum, 316L stainless steel custom material options available) | Operating Conditions | Temperature: 5°C-35°C (41°F-95°F), 5-90% RH non-condensing |
| Storage Conditions | Temperature: 0°C-40°C (32°F-104°F), 5-95% RH non-condensing | ||
| Warranty | 24 months (calculated from the date of product activation or six months after the date of manufacture, whichever comes first) |
MODEL DIFFERENCES:
| Model | C320 | C320F | C320FNS |
| Exhaust Filtration | N/A | Built-in HEPA filter, filtration efficiency >99.999% for particles @ 0.3μm | |
| NFC & Scanner | N/A | Supports NFC and features an integrated barcode & QR code scanner | |
| Dimensions (H × W × D) | 220.5*163*120mm / 8.68*6.42*4.72in | 235.5*163*120mm / 9.27*6.42*4.72in | |
| Weight | 2.5Kg / 5.51lbs | 2.55Kg / 5.62lbs | 2.61Kg / 5.75lbs |
| Battery Life | Battery life ≥ 7 hours (100L/min) Battery life ≥ 2.5 hours (200L/min) | Battery life ≥ 6.5 hours (100L/min) Battery life ≥ 2 hours (200L/min) | |
