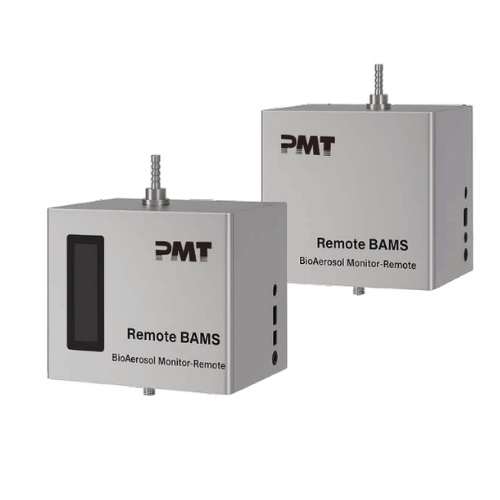

PMT® Remote BAMS
The Remote BAMS (Bioaerosol Monitoring System) is an advanced real-time airborne microbial monitoring solution designed for continuous environmental surveillance in pharmaceutical, biotechnology, and cleanroom applications. It enables highly accurate detection of bioaerosols directly at the sampling point, ensuring immediate awareness of contamination events without the need for incubation or traditional culture-based methods.Engineered for flexible deployment, the Remote BAMS can operate either via a central vacuum pump system or an independent external blower unit, making it suitable for both fixed installations and distributed monitoring networks. Its external gel membrane collection system ensures efficient capture of airborne microorganisms while maintaining sample integrity. With a standard flow rate of 2.83 LPM, the system provides stable and reproducible sampling performance. The isokinetic probe design optimizes particle collection efficiency, while compatibility with multiple sampling configurations enhances versatility across different controlled environments.The Remote BAMS supports seamless integration into existing contamination control strategies (CCS), offering real-time data for rapid decision-making and process optimization. The Remote BAMS met or exceeded all the acceptance criteria as outlined in USP <1223> for accuracy, precision, linearity, specificity, LOD, LOQ, range, ruggedness, and robustness – so is an accepted alternative method for Microbial Environmental Monitoring in a Grade A area.
Merkmale und Vorteile
| Specification | BioAerosol Monitor-Remote | Remote BAMS | |
| M520S | M520 | |
| Flow Rate | 2.83LPM ± 3% | |
| Size Range | 0.5µm to 25µm | |
| Size Channel | 0.5µm, 1.0µm, 2.0µm,3.0µm,5.0µm,10.0µm | |
| Size Resolution | <15% @ 0.5µm (ISO 21501-4) | |
| Count Efficiency | 0.5µm: 50% ±20%，>0.75µm: 100% ±10% (ISO 21501-4, JIS B9921) | |
| Concentration Limit | 4,000,000 particles/ft³ at 10% coincidence loss | |
| Zero Count | <1count/5min | |
| Flow Rate Control | PMT External Blower Unit, closed-loop auto control; or flow restriction orifice plate connect with vacuum pump. | |
| Exhaust | External HEPA filter (>99.999%@0.3µm) | |
| Laser Source | Long-life laser | |
| Communication | RJ45, USB, SENSER-HU, WIFI (optional) | |
| Alarm | Built-in alarm | |
| Display | 4.0"LCD capacitive touch screen | N/A |
| Language | English | N/A |
| Calibration Frequency | Recommended once a year | |
| Dimensions (H×W×D) | 224.30×251.00×188.50mm/ 8.83×9.88×7.42 in | 224.30×251.00×188.50mm/ 8.83×9.88×7.42 in |
| Weight | 3.6 kg/ 7.94 lbs | 3.4 kg/ 7.50 lbs |
| Enclosure | Anodized aluminum | |
| Power | 100-240V, 50Hz/60Hz AC to 24V DC input, plug compatible with standard interface types | |
| Max Power Consumption | AC 10 W | AC 9W |
| Operating Conditions | Operating temperature: 5℃-35℃ (41℉-95℉)， Relative humidity: 5%-90%, non-condensing | |
| Storage Conditions | Storage temperature: 0℃-40℃ (32℉-104℉) Relative humidity: 5%-95%, non-condensing | |
| Safety | EN 61010-1:2010, EN 61326-1:2013, EN IEC 61326-1:2021 | |
| Warranty | 12 months (calculated from the date of product activation or six months after the date of manufacture, whichever comes first) | |
| Specification | External Gel Membrane Holder | |
| Gel Membrane Specification | Φ37mm | |
| Dimensions | Whole Diameter: 56mm/2.20 in Height: 81.4mm/3.20 in | |
| Sample Tubing | OD: 8mm/0.32 in | |
| Weight | 0.31Kg/0.68lbs | |
| Enclosure | 316L Stainless Steel | |
| Specification | External Blower Unit | |
| Dimensions（H×W×D） | 71×135×104 mm；2.80×5.32×4.09 in | |
| Weight | 0.74 kg/ 1.63 lbs | |
| Enclosure | Aluminium alloy | |
| Operating Conditions | Operating temperature: 5-35℃ (41℉-95℉); Relative humidity: 5-90% non-condensing | |
| Storage Condition | Storage temperature: 0-40℃ (32℉-104℉); Relative humidity: 5-95% non-condensing | |
| Warranty | 12 months (calculated from the date of product activation or six months after the date of manufacture, whichever comes first). | |
