Airsampler Slit-to-Agar – V100

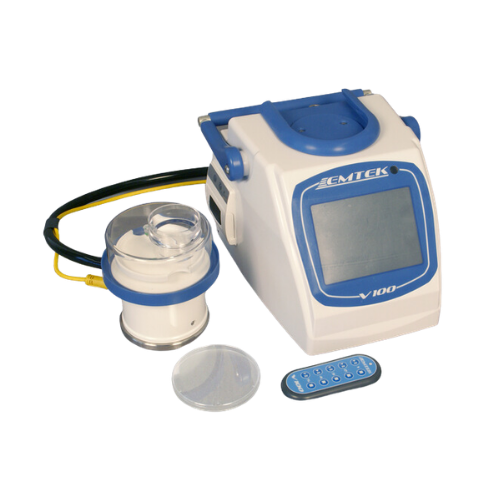

The EMTEK V100 Microbial Air Sampler is a highly flexible system designed for both mobile and stationary microbiological air monitoring. Capable of monitoring up to four sampling points simultaneously, it provides an efficient solution for cleanroom environmental monitoring while using standard 90 mm Petri dishes. At the heart of the system is the V100 Controller, featuring an intuitive touchscreen interface and an integrated vacuum source. The controller operates a range of interchangeable remote sampling heads, including the Remote Slit-to-Agar Sampler (R2S), the Remote Autoclavable Sampler (RAS), and the Remote Compressed Gas/Combined Space Sampler (RCG), allowing the system to be adapted to a wide variety of monitoring applications. The R2S and RCG configurations support time-resolved sampling using a rotating agar plate. Both the rotation speed, sampling interval, and pause times can be fully programmed, enabling precise and repeatable monitoring according to process requirements. To ensure accurate and consistent performance, the V100 offers mass flow-controlled sampling rates of 28.3, 50, and 100 LPM and has been validated in accordance with ISO 14698-1. PMT also provides comprehensive Installation and Operational Qualification (IQ/OQ), as well as service and calibration options, ensuring reliable long-term operation and regulatory compliance.
Specification
| V100 Controller |
| Color LCD with Touch Screen Interface |
| On Screen Test Plate Sample Tracking |
| Mass Flow Controlled Sampling @ 28.3, 50 & 100 LPM |
| Custom Test Delay / Hold / Run Programmability |
| 0-60 Minutes of Monitoring per Test Period |
| Test Period Pause/Resume Capability |
| Label/Paper Printer Outputs Key Sample Parameters |
| Sample Memory Buffer >500 (CSV Output) |
| Ethernet and USB Connectivity |
| Maintains >300 Sample Location Entries |
| IR Remote Control (Start/Stop, Pause/Resume) |
| Enclosure of 316 SS and Kydex™ with Microban™ (Note : il y a une petite coquille dans l'image originale sur le mot "Enclosure", écrit "Enclsoure") |
| Portable with Retractable Handle and Only 12 lbs |
| 0.2 Micron Filtered HEPA Exhaust |
| Operates at 115 V @ 60Hz , 220 V @ 50Hz & 100 V @ 50Hz |
| Only 10” L X 8” W X 7” H |
| Power/Vacuum Line Assembly 6’ or 12’ (Up to 75’) |
| Sampler Transport/Mount Boot |
| Operates 3 Sampling Devices (R2S, RCG, RAS) |
| Remote-Slit-Sampler (R2S) |
| Constructed of Aluminum / 316 Stainless Steel |
| Exterior Finish of White Epoxy/Polyester Coating |
| Clear Polycarbonate Dome Assembly w/Distance Gauge |
| Weight of 3.25 Pounds |
| Dimensions of 5.5" Height x 5" Diameter |
| Turntable Stepper Motor Controlled |
| Base is Chemically Sanitizable, Dome/Seal Autoclavable |
| From 0-120 Minutes of Monitoring per Sample Cycle |
| Extended Sample Cycles Possible (e.g., 120 minutes) |
| Sampling Rate Options of 28.3, 50 & 100 LPM (requires different domes, as indicated by color coded distance gauges mounts) |
| Compressed Gas/Confined Space (RCG) |
| Constructed of Aluminum / 316 Stainless Steel |
| Exterior Finish of White Epoxy/Polyester Coating |
| Clear Polycarbonate Dome |
| Aluminum Sanitary Inlet Attachment, SS Sanitary Clamp, PTFE Seal, Sanitary Barb and Vacuum Tubing |
| Dome Retention Assembly of Aluminum, 316 SS and Tubing |
| Weight of 4 Pound |
| Dimensions of 7.5" Height x 5" Diameter |
| Base is Chemically Sanitizable, Dome/Seal Autoclavable |
| Turntable Stepper Motor Controlled |
| From 0-120 Minutes of Monitoring per Sample Cycle |
| Confined Space Sample Rate Options of 28.3, 50 & 100 LPM |
| Remote Autoclavable Sampler (RAS) |
| Constructed of Aircraft Grade Aluminum (316 SS Available for 100LPM Sampling Rate) |
| 300 Inlet Hole Cover |
| Only 1.75" Tall and 4.25" in Diameter |
| Adjustable Test Media Stage |
| May be Sterilized by Autoclave, or Chemically Santized/Sterilized |
| From 0-60 Minutes of Monitoring per Sample Cycle |
| Sampling Rate Options of 28.3, 50 & 100 LPM |
