PMT® 8300

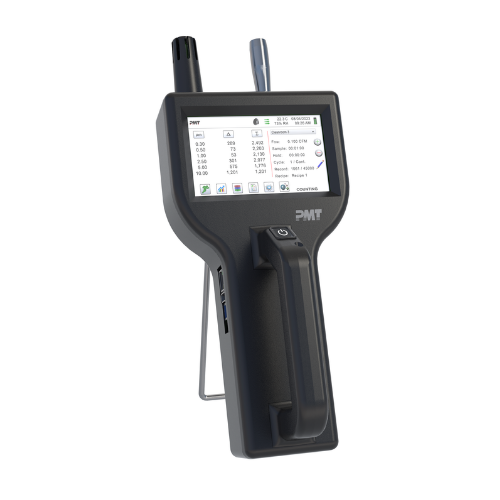

The PMT 8300 Particle Counter is a portable instrument designed for precise airborne particle measurement in the size range of 0.3 to 25.0 μm at a constant flow rate of 1.2 LPM. It features a user-friendly configuration and allows real-time monitoring of up to six user-selectable particle size channels, as well as environmental parameters such as temperature and relative humidity. The device provides comprehensive data display and documentation, with measurement results viewable directly on the screen, printable, or stored on a USB drive. Data can also be monitored in real time or exported to compatible software, facilitating efficient tracking and archival of measurements. The PMT 8300 includes a mass concentration mode, which estimates particle density in μg/m³, enabling detailed analysis of air quality. All PMT particle counters comply with international calibration standards ISO 21501-4 and JIS B9921, ensuring high accuracy and reliability. Equipped with an integrated pulse height analyzer and offering remote operation and monitoring via a web browser, the PMT 8300 provides a flexible solution for particle measurement and monitoring in demanding environments such as cleanrooms, laboratories, and industrial facilities. With its combination of precision, real-time environmental monitoring, and versatile data management, the PMT 8300 Particle Counter delivers accurate and reliable airborne particle measurement for critical applications requiring continuous oversight of air quality.
Specifications
| Size Range | 0.3 to 25 μm |
| Size Channels | Factory calibrated at 0.3, 0.5, 1.0, 2.5, 5.0, 10.0 μm variable binning |
| Flow rates | 1.2 LPM |
| Concentration Limits | 27,000,000 particles/ft3 @ 10% coincidence (per ISO 21501-4), 50,000,000 particles/ft3 @ 10% coincidence (as tested and validated) |
| Battery Run Time | >10 hours continuous operation |
| Light Source | Long life laser diode |
| Counting Efficiency | 50% @ 0.3 μm; 100% for particles >0.45 μm per JIS |
| Zero Count | <1 count / 60 minutes (<1 particles / 6 ft3). No fault count subtraction |
| Count Modes | Real-Time Meter and graph, cumulative/differential count/m³and count/ft³, and mass concentration (PM) |
| Count Alarms | 1 to 9,999,999 counts |
| Display | 4.3″ (10.9 cm) WQVGA (480×272) color touch screen |
| Printer | (Optional) External thermal printer available |
| Vacuum Source | Internal pump with automatic flow control |
| Filtered Exhaust | Internal HEPA filter |
| Number of Channels | 6 |
| Custom Size Channels | Calibration for custom size channels available |
| Audible Alarm | Adjustable built-in alarm |
| Battery | Removable Li-ion (Recharge time: 4 hours within instrument, <2 hours with external battery charger) |
| Reports | ISO 14644-1, EU GMP Annex 1, FS 209E |
| Recipes | 50 user-configurable recipes |
| Communication Modes | Ethernet and USB. (Optional) Wireless 802.11 b/g |
| Environmental Sensor | Includes temperature 32º to 122ºF (0º to 50ºC) ±1ºF (0.5ºC) and relative humidity probe 15-90% ±2% |
| Alarm | Alarms on counts for all particle sizes, sensor failure, environmental sensors and flow |
| Standards | ISO 21501-4 and JIS B9921 |
| External Surface | High impact injection molded plastic |
| Dimensions (L x W x H) | 5.12” x 4.25” x 12.26” (13.0 cm x 10.8 cm x 31.1 cm) includes handle and does not include probes |
| Weight | 2.2 lb (1.0 kg) |
| Accessories | Operating manual and IMS software on USB flash drive, isokinetic probe, temperature relative humidity sensor, filter, battery, USB cable, power supply and cable |
| Optional Accessories | Printed manual, carrying case, spare battery, external battery charger, external printer and isokinetic probes, barbed fittings |
| Buffer Memory | 45,000 sample records (rotating buffer) including particle count data, environmental data, locations, annotations, and times. Scrollable on screen or printout |
| Sample Locations | Up to 1,000 locations 20 characters long |
| Sample Time | 1 second to 99 hours |
| Power | 110 to 240 VAC 50/60 Hz universal in-line power supply |
| Operating Conditions | 41º to 104ºF (5º to 40ºC) / 20% to 95% non-condensing |
| Storage Conditions | 32º to 122ºF (0º to 50ºC) / Up to 98% non-condensing |
| Warranty | 5 year warranty.| Blower warranty : 1 year |
| Calibration frequency | Recommended minimum once per year |
| Calibration | NIST traceable |
