PMT® 8303

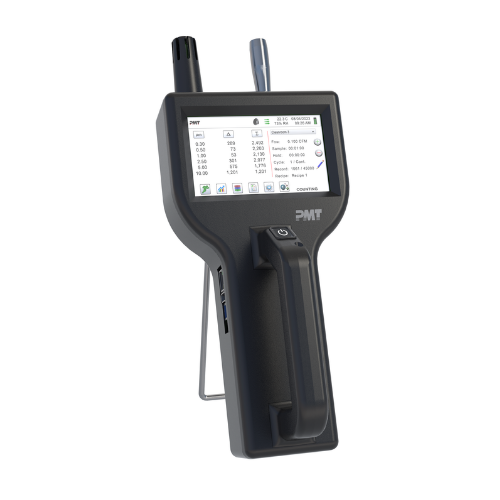

The PMT 8303 Handheld Particle Counter is a powerful and portable instrument designed for precise measurement of airborne particles ranging from 0.3 to 25.0 μm. Operating at a constant flow rate of 0.1 CFM (2.83 LPM), it delivers reliable and accurate particle counts across a variety of applications, including cleanrooms and industrial environments. The user-friendly device can be easily configured and allows selection of up to three user-defined particle size channels. It also monitors key environmental parameters such as temperature and relative humidity, providing a comprehensive assessment of air quality. Measurement data can be viewed in real time on the display, printed directly, or stored on a USB drive for further analysis. The PMT 8303 supports multiple reporting options, including ISO 14644-1, EU GMP Annex 1, and FS 209E, enabling compliance with international standards for cleanroom and controlled environments. Remote operation and monitoring via a web browser further simplify handling and system integration. The instrument includes a mass concentration mode that estimates particle density in μg/m³, allowing detailed evaluation of air quality. All PMT particle counters, including the 8303, comply with international calibration standards ISO 21501-4 and JIS B9921, ensuring high measurement accuracy and reliability. An integrated pulse height analyzer guarantees consistent performance and adherence to regulatory requirements, making the PMT 8303 an effective and dependable solution for airborne particle monitoring in demanding environments.
Specifications
| Size Range | 0.3 to 25 μm |
| Size Channels | Factory calibrated at 0.3, 0.5, 1.0 μm variable binning |
| Flow rates | 0.1 CFM (2.83 LPM) |
| Concentration Limits | 15,000,000 particles/ft3 @ 10% coincidence (per ISO 21501-4), 30,000,000 particles/ft3 @ 10% coincidence (as tested and validated) |
| Battery Run Time | >10 hours continuous operation |
| Light Source | Long life laser diode |
| Counting Efficiency | 50% @ 0.3 μm; 100% for particles >0.45 μm per JIS |
| Zero Count | <1 count / 60 minutes (<1 particles / 6 ft3). No fault count subtraction |
| Count Modes | Real-Time Meter and graph, cumulative/differential count/m³and count/ft³, and mass concentration (PM) |
| Count Alarms | 1 to 9,999,999 counts |
| Display | 4.3″ (10.9 cm) WQVGA (480×272) color touch screen |
| Printer | (Optional) External thermal printer available |
| Vacuum Source Filtered Exhaust | Internal pump with automatic flow control |
| Filtered Exhaust | Internal HEPA filter |
| Number of Channels | 3 |
| Custom Size Channels | Calibration for custom size channels available |
| Audible Alarm | Adjustable built-in alar |
| Battery | Removable Li-ion (Recharge time: 4 hours within instrument, <2 hours with external battery charger) |
| Reports | ISO 14644-1, EU GMP Annex 1, FS 209E |
| Recipes | 50 user-configurable recipes |
| Communication Modes | Ethernet and USB. (Optional) Wireless 802.11 b/g |
| Environmental Sensor | Includes temperature 32º to 122ºF (0º to 50ºC) ±1ºF (0.5ºC) and relative humidity probe 15-90% ±2% |
| Alarm | Alarms on counts for all particle sizes, sensor failure, environmental sensors and flow |
| Standards | ISO 21501-4 and JIS B9921 |
| External Surface | High impact injection molded plastic |
| Dimensions (L x W x H) | 5.12” x 4.25” x 12.26” (13.0 cm x 10.8 cm x 31.1 cm) includes handle and does not include probes |
| Weight | 2.2 lb (1.0 kg) |
| Accessories | Operating manual and IMS software on USB flash drive, isokinetic probe, temperature relative humidity sensor, filter, battery, USB cable, power supply and cable, Calibration certificate |
| Optional Accessories | Printed manual, carrying case, spare battery, external battery charger, external printer and isokinetic probes, barbed fittings |
| Buffer Memory | 45,000 sample records (rotating buffer) including particle count data, environmental data, locations, annotations, and times. Scrollable on screen or printout |
| Sample Locations | Up to 1,000 locations 20 characters long |
| Sample Time | 1 second to 99 hours |
| Power | 110 to 240 VAC 50/60 Hz universal in-line power supply |
| Operating Conditions | 41º to 104ºF (5º to 40ºC) / 20% to 95% non-condensing |
| Storage Conditions | 32º to 122ºF (0º to 50ºC) / Up to 98% non-condensing |
| Warranty | 5 year warranty | Blower warranty : 1 year |
| Calibration frequency | Recommended minimum once per year |
| Calibration | NIST traceable |
