PMT® 8503

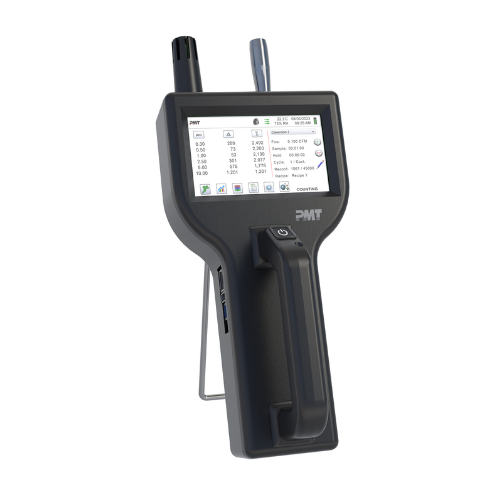

The PMT 8503 Handheld Particle Counter is a precise and compact instrument for detecting airborne particles ranging from 0.5 to 25.0 μm at a constant flow rate of 0.1 CFM (2.83 LPM). Designed for mobile applications and spot-check contamination monitoring, it provides a reliable solution for air quality assessment in cleanrooms, laboratories, and controlled production environments. The device is easy to configure and displays up to three user-selectable particle size channels while simultaneously recording environmental parameters such as temperature and relative humidity, enabling a comprehensive evaluation of air quality. Measurement results can be viewed directly on the display, printed, saved to a USB drive, or exported in real time using versatile interface options. The PMT 8503 also supports report generation according to ISO 14644-1, EU GMP Annex 1, and FS 209E standards. Remote operation and monitoring via a web browser allow seamless integration into existing quality assurance and monitoring processes. An integrated mass concentration mode estimates particle density in μg/m³, providing additional insight into airborne contamination levels. All PMT particle counters, including the 8503, comply with ISO 21501-4 and JIS B9921 calibration standards, ensuring high accuracy and reliability. The built-in pulse height analyzer guarantees precise particle counting while maintaining compliance with regulatory requirements. The PMT 8503 is therefore ideal for applications demanding accurate, dependable, and flexible particle monitoring in sensitive environments.
Specifications
| Size Range | 0.5 to 25 μm |
| Size Channels | Factory calibrated at 0.5,1.0, 5.0 μm |
| Flow rates | 0.1 CFM (2.83 LPM) |
| Concentration Limits | 15,000,000 particles/ft3 @ 10% coincidence (per ISO 21501-4), 30,000,000 particles/ft3 @ 10% coincidence (as tested and validated) |
| Battery Run Time | >10 hours continuous operation |
| Light Source | Long life laser diode |
| Counting Efficiency | 50% @ 0.3 μm; 100% for particles >0.45 μm per JIS |
| Zero Count | <1 count / 60 minutes (<1 particles / 6 ft3). No fault count subtraction |
| Count Modes | Real-Time Meter and graph, cumulative/differential count/m³and count/ft³, and mass concentration (PM) |
| Count Alarms | 1 to 9,999,999 counts |
| Display | 4.3″ (10.9 cm) WQVGA (480×272) color touch screen |
| Printer | (Optional) External thermal printer available |
| Vacuum Source | Internal pump with automatic flow control |
| Filtered Exhaust | Internal HEPA filter |
| Number of Channels | 3 |
| Custom Size Channels | Calibration for custom size channels available |
| Audible Alarm | Adjustable built-in alarm |
| Battery | Removable Li-ion (Recharge time: 4 hours within instrument, <2 hours with external battery charger) |
| Reports | ISO 14644-1, EU GMP Annex 1, FS 209E |
| Recipes | 50 user-configurable recipes |
| Communication Modes | Ethernet and USB. (Optional) Wireless 802.11 b/g |
| Environmental Sensor | Includes temperature 32º to 122ºF (0º to 50ºC) ±1ºF (0.5ºC) and relative humidity probe 15-90% ±2% |
| Alarm | Alarms on counts for all particle sizes, sensor failure, environmental sensors and flow |
| Standards | ISO 21501-4 and JIS B9921 |
| External Surface | High impact injection molded plastic |
| Dimensions (L x W x H) | 5.12” x 4.25” x 12.26” (13.0 cm x 10.8 cm x 31.1 cm) includes handle and does not include probes |
| Weight | 2.2 lb (1.0 kg) |
| Accessories | Operating manual and IMS software on USB flash drive, isokinetic probe, temperature relative humidity sensor, filter, battery, USB cable, power supply and cable, Calibration certificate |
| Optional Accessories | Printed manual, carrying case, spare battery, external battery charger, external printer and isokinetic probes, barbed fittings |
| Buffer Memory | 45,000 sample records (rotating buffer) including particle count data, environmental data, locations, annotations, and times. Scrollable on screen or printout |
| Sample Locations | Up to 1,000 locations 20 characters long |
| Sample Time | 1 second to 99 hours |
| Power | 110 to 240 VAC 50/60 Hz universal in-line power supply |
| Operating Conditions | 41º to 104ºF (5º to 40ºC) / 20% to 95% non-condensing |
| Storage Conditions | 32º to 122ºF (0º to 50ºC) / Up to 98% non-condensing |
| Warranty | 5 year warranty | Blower warranty : 1 year |
| Calibration frequency | Recommended minimum once per year |
| Calibration | NIST traceable |
