PMT® 8506-30

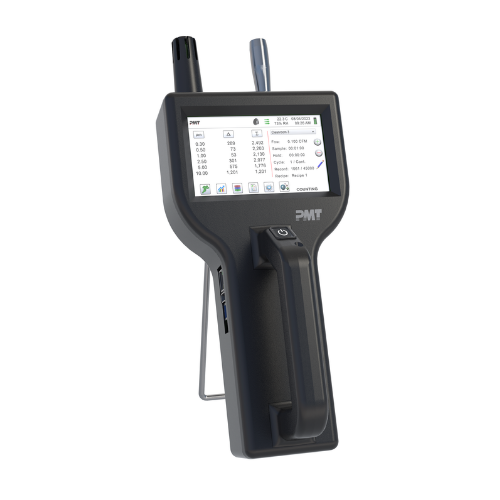

The PMT 8506-30 Handheld Particle Counter is a portable instrument for reliable detection of airborne particles ranging from 0.5 to 75 μm at a constant flow rate of 0.1 CFM (2.83 LPM). The device is designed for applications requiring precise air cleanliness monitoring, particularly in controlled environments such as cleanrooms and production areas. The user-friendly instrument can display up to six user-selectable particle size channels while simultaneously recording environmental parameters including temperature and relative humidity. Measurement data can be viewed directly on the display or exported in real time via a printer, USB drive, or data download software. Reports can be generated in accordance with ISO 14644-1, EU GMP Annex 1, or FS 209E. The PMT 8506-30 supports remote operation and monitoring via a web browser and features a mass concentration mode that approximates particle density in μg/m³, enabling enhanced air quality analysis. The particle counter complies with international calibration standards ISO 21501-4 and JIS B9921. An integrated pulse height analyzer ensures regulation-compliant measurements, guaranteeing adherence to all relevant regulatory requirements.
Specifications
| Size Range | 0.5 to 75.0 μm |
| Size Channels | Factory calibrated at 0.5, 1.0, 2.5, 5.0, 10.0, 30.0 μm variable binning |
| Flow rates | 0.1 CFM (2.83 LPM) |
| Concentration Limits | 15,000,000 particles/ft3 @ 10% coincidence (per ISO 21501-4), 30,000,000 particles/ft3 @ 10% coincidence (as tested and validated) |
| Battery Run Time | >10 hours continuous operation |
| Light Source | Long life laser diode |
| Counting Efficiency | 50% @ 0.5 μm; 100% for particles >0.75 μm per JIS |
| Zero Count | <1 count / 60 minutes (<1 particles / 6 ft3). No fault count subtraction |
| Count Modes | Real-Time Meter and graph, cumulative/differential count/m³and count/ft³, and mass concentration (PM) |
| Count Alarms | 1 to 9,999,999 counts |
| Display | 4.3″ (10.9 cm) WQVGA (480×272) color touch screen |
| Printer | (Optional) External thermal printer available |
| Vacuum Source | Internal pump with automatic flow control |
| Filtered Exhaust | Internal HEPA filter |
| Number of Channels | 6 |
| Custom Size Channels | Calibration for custom size channels available |
| Audible Alarm | Adjustable built-in alarm |
| Battery | Removable Li-ion (Recharge time: 4 hours within instrument, <2 hours with external battery charger) |
| Reports | ISO 14644-1, EU GMP Annex 1, FS 209E |
| Recipes | 50 user-configurable recipes |
| Communication Modes | Ethernet and USB. (Optional) Wireless 802.11 b/g |
| Environmental Sensor | Includes temperature 32º to 122ºF (0º to 50ºC) ±1ºF (0.5ºC) and relative humidity probe 15-90% ±2% |
| Alarm | Alarms on counts for all particle sizes, sensor failure, environmental sensors and flow |
| Standards | ISO 21501-4 and JIS B9921 |
| External Surface | High impact injection molded plastic |
| Dimensions (L x W x H) | 5.12” x 4.25” x 12.26” (13.0 cm x 10.8 cm x 31.1 cm) includes handle and does not include probes |
| Weight | 2.2 lb (1.0 kg) |
| Accessories | Operating manual and IMS software on USB flash drive, isokinetic probe, temperature relative humidity sensor, filter, battery, USB cable, power supply and cable |
| Optional Accessories | Printed manual, carrying case, spare battery, external battery charger, external printer and isokinetic probes, barbed fittings |
| Buffer Memory | 45,000 sample records (rotating buffer) including particle count data, environmental data, locations, annotations, and times. Scrollable on screen or printout |
| Sample Locations | Up to 1,000 locations 20 characters long |
| Sample Time | 1 second to 99 hours |
| Power | 110 to 240 VAC 50/60 Hz universal in-line power supply |
| Operating Conditions | 41º to 104ºF (5º to 40ºC) / 20% to 95% non-condensing |
| Storage Conditions | 32º to 122ºF (0º to 50ºC) / Up to 98% non-condensing |
| Warranty | 5 year warranty | Blower warranty : 1 year |
| Calibration frequency | Recommended minimum once per year |
| Calibration | NIST traceable |
