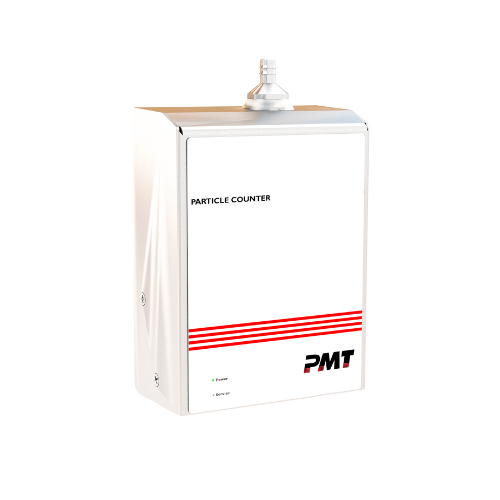

PMT® 9300P PoE
The 9300P PoE Remote Particle Counter is a high-precision and powerful instrument for measuring particles in the range of 0.3 to 25.0 μm at a constant flow rate of 1.2 liters per minute (LPM). With this wide measurement range, the 9300P provides accurate particle counting for a variety of applications where precise monitoring of air quality or cleanliness is critical. The device complies with international calibration standards ISO 21501-4 and JIS B9921, making it a reliable choice for industries that require the highest levels of precision and quality. A key feature of the 9300P is the ability to select up to 30 user-defined particle size channels, allowing flexible and customizable measurements. These channels can optionally be expanded to 30, enabling detailed analysis and differentiated particle classification within the desired range. The particle counter is also equipped with an innovative integrated critical nozzle and a flow sensor, ensuring a stable and consistent flow rate even when using an external vacuum source. Another notable feature of the 9300P is its seamless integration into modern building automation or facility monitoring systems. Supporting the MODBUS™ TCP/IP protocol via Ethernet or Wi-Fi (802.11 b/g), the particle counter can be easily incorporated into existing systems, allowing comprehensive remote monitoring and real-time data transmission. This functionality enables efficient management and control of air quality across various environments, from cleanrooms to more demanding manufacturing areas. With its robust construction, user-friendly interfaces, and ability to deliver detailed, precise measurements, the 9300P PoE Remote Particle Counter is an excellent solution for applications where monitoring particle concentration and maintaining strict air quality standards are of utmost importance.
Specifications
| Size Range | 0.3 µm to 25 µm |
| Size Channels | Factory calibrated at 0.3, 0.5, 1.0, 2.5, 5.0, 10.0 µm |
| Number of Channels | up to 30 Channels |
| Counting Efficiency | 50% @ 0.3µm; 100% for particles > 0.45 µm per JIS |
| Flow Rate | 1.2 LPM |
| Concentration Limits | 27,000,000 particles/ft3 @ 10% coincidence (per ISO 21501-4), 50,000,000 particles/ft3 @ 10% coincidence (as tested and validated) |
| Light Source | Long life laser diode |
| Zero Count | < 1 count / 60 minutes (< 1 particles / 6ft3). No fault count subtraction. |
| Alarms | Channel alarms on Raw counts, concentrations or mass (alarms on environmental sensors optional) |
| Calibration | NIST traceable |
| Vacuum Source | Internal vacuum pump with HEPA filter |
| Filtered Exhaust | Internal HEPA filter |
| Airflow | Internally monitored |
| Configuration/Download | USB mini-B |
| Alarm | Alarm LED ring |
| Communication Modes | MODBUS™ TCP/IP over Ethernet or WiFi (802.11 b/g) |
| Environmental Sensor | (Optional) Temp and RH probe 32º to 122ºF (0º to 50ºC) ±1ºF (0.5ºC), 15-90% ±2% relative humidity |
| Standards | ISO 21501-4 and JIS B9921 |
| Instrument Calibration | Recommended minimum once per year |
| External Surface | Stainless steel |
| Dimensions (L x W x H) | 3.59” x 1.80” x 4.86” (9.1 cm x 4.5 cm x 12.3 cm) |
| Weight | 1.71 lb. (780 grams) |
| Accessories | Operating manual and Instrument Management Software (IMS) on USB flash drive, isokinetic probe, power supply and cable |
| Optional Accessories | Printed manual barb fittings, mounting bracket and sample tubing, IMS-RT monitoring system |
| Buffer Memory | 65,000 sample records (rotating buffer) including particle count data and environmental data |
| Sample Time | 1 second to 99 hours |
| Power | 7 - 15 VDC (30 watts) |
| Operating Conditions | 41° to 104°F (5° to 40°C) / 20% to 95% non-condensing |
| Storage Conditions | 32° to 122°F (0° to 50°C) / Up to 98% non-condensing |
| Warranty | 5 year warranty | Blower warranty : 1 year |
