PMT® 9501 PoE

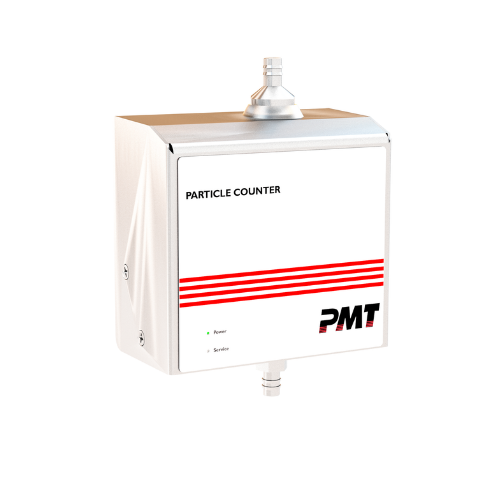

The 9501 PoE Remote Particle Counter is a reliable and high-precision instrument for monitoring airborne particles in controlled environments. It measures particle sizes ranging from 0.5 to 25.0 μm at a constant flow rate of 0.1 CFM (2.83 liters per minute), providing accurate and consistent particle counting. The sensor not only meets international calibration standards ISO 21501-4 and JIS B9921 but exceeds them, making it particularly suitable for applications requiring the highest levels of air cleanliness. The 9501 PoE features six user-selectable particle size channels, expandable up to 30 channels depending on application requirements. This flexibility allows for continuous real-time monitoring of a wide range of particle types, supporting detailed and differentiated particle analysis across multiple size ranges. An integrated critical nozzle and precise flow sensor ensure stable flow conditions, maintaining consistent measurement accuracy even when connected to an external vacuum source. Integration into existing building automation or facility monitoring systems is straightforward via the MODBUS TCP/IP interface. This enables seamless communication with other system components, centralized monitoring, and efficient data evaluation. The 9501 PoE is therefore ideal for use in cleanrooms, laboratories, and other sensitive environments where precise airborne particle control is essential. With the 0.1 CFM flow rate, this is ideal for industries such as automotive, electronics, and aerospace.
Specifications
| Size Range | 0.5 µm to 25 µm |
| Size Channels | Factory calibrated at 0.5, 0.7, 1.0, 2.5, 5.0, 10.0 µm |
| Number of Channels | 6 channels (up to 30 optional) |
| Counting Efficiency | 50% @ 0.5µm; 100% for particles > 0.75 µm per JIS |
| Flow Rate | 0.1 CFM (2.83 LPM) |
| Concentration Limits | 10,000,000 particles/ft3 @ 10% coincidence (per ISO 21501-4), 20,000,000 particles/ft3 @ 10% coincidence (as tested and validated) |
| Light Source | Long life laser diode |
| Zero Count | <1 count / 60 minutes (<1 particles / 6 ft3). No fault count subtraction |
| Alarms | Channel alarms on Raw counts, concentrations or mass (alarms on environmental sensors optional) |
| Calibration | NIST traceable |
| Vacuum Source | External vacuum > 15” (38.1cm) of Hg |
| Airflow | Internally monitored |
| Configuration/Download | USB mini-B |
| Alarm | Alarm LED ring |
| Communication Modes | MODBUS™ TCP/IP over Ethernet or WiFi (802.11 b/g) |
| Environmental Sensor | (Optional) Temp and RH probe 32º to 122ºF (0º to 50ºC) ±1ºF (0.5ºC), 15-90% ±2% relative humidity |
| Standards | ISO 21501-4 and JIS B9921 |
| Instrument Calibration | Recommended minimum once per year |
| External Surface | Stainless steel |
| Dimensions (L x W x H) | 3.59” x 1.83” x 5.01” (9.1 cm x 4.6 cm x 12.7 cm) including probes and connectors |
| Weight | 1.08 lb. (494 grams) |
| Accessories | Operating manual and Instrument Management Software (IMS) on USB flash drive, Calibration certificate |
| Optional Accessories | Printed manual, barb fittings, mounting bracket and sample tubing, Power Supply |
| Buffer Memory | 65,000 sample records (rotating buffer) including particle count data and environmental data |
| Sample Time | 1 second to 99 hours |
| Power | 7 - 15 VDC (30 watts) or PoE (compliant with IEEE802.3af) |
| Operating Conditions | 41° to 104°F (5° to 40°C) / 20% to 95% non-condensing |
| Storage Conditions | 32° to 122°F (0° to 50°C) / Up to 98% non-condensing |
| Warranty | 5 year warranty | Blower warranty : 1 year |
