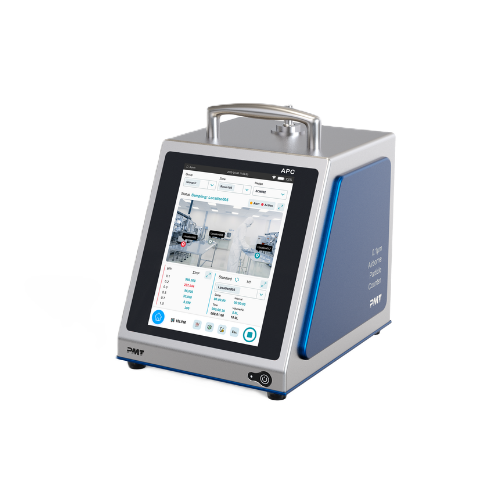

PMT® Airborne Particle Counter A010 – 0.1 µm (10LPM)
The PMT 0.1 µm Portable Airborne Particle Counter A010 is a high-precision instrument designed for continuous air quality monitoring in cleanrooms and controlled environments. It measures ultra-fine particles down to 0.1 µm using six particle size channels, providing real-time particle concentration data for accurate analysis compliant with ISO Class 1 and Class 2. The device features an 8-inch capacitive touchscreen that displays concentration curves and sampling data simultaneously. Its internal memory supports extensive data storage and enables automatic generation of reports in compliance with ISO and Federal Standard (Fed-Std) requirements. The A010 includes multi-level user management and an audit trail to ensure data integrity and traceability compliant with 21 CFR Part 11. An integrated HEPA filter ensures clean exhaust. Multiple communication interfaces, including RJ45, USB, sensor hub, and optional Wi-Fi, allow for efficient data transfer and remote monitoring. The instrument’s robust and portable design allows for reliable operation in demanding monitoring environments such as the semiconductor and electronics industries.
Specifications
| Particle Size Range | 0.1 µm to 1.0 µm |
| Size Channels | 0.1 µm, 0.2 µm, 0.3 µm, 0.5 µm, 0.7 µm, 1.0 µm |
| Count Efficiency | (50±20)% for 0.1 µm, (100±10)% for 0.15 µm (meets ISO 21501-4 and JIS B9921 |
| Flow Rate | 10 LPM±5% |
| Laser Source | Long life laser |
| Flow Rate Control | Closed-loop automatic control |
| Concentration Limit | 4,000,000 particles/ft³ at 10% coincidence loss |
| Zone/Location | 20,000 zones and 200,000 locations |
| Sampling Time | 1 second to 168 hours |
| Delay | 0 second to 99 hours 59 minutes 59 seconds |
| Cycles | 1000 samples in one location |
| Interval | 0 seconds to 99 hours 59 minutes 59 seconds |
| Sampling Mode | Manual, auto, cumulative count Σ/ differential count Δ or concentration |
| Zero Count | <1 count/5 min |
| Exhaust | Built-in HEPA filter, filter efficiency: >99.999%@0.1 µm |
| Display | 8″ LCD capacitive touch screen |
| Language | Chinese, English |
| Communication | RJ45, USB, SENSER-HUB, WIFI (Optional) |
| Reports | Compliant with ISO/Fed Std |
| Export File | PDF file or EXCEL file |
| Data Storage | 3.0GB, 5 million sample records |
| Data Security | Multi-level authority management, with audit trail capabilities |
| Data Reliability | Compliant with 21 CFR Part 11 |
| Auto or Off-line | |
| Alarm | Built-in alarm buzzer |
| Calibration Frequency | Recommend once a year |
| Dimensions (HxWxD) | 10x7.87x10.39 in/255x200x264 mm (with handle and foot mat) |
| Weight | 6.0Kg / 13.2 lbs (without battery), 7.0 Kg / 15.3 lbs (Incl. 2 batteries) |
| Enclosure | 316L stainless steel and anodized aluminum |
| Power | AC 100-240 V, 50 Hz/60 Hz |
| Battery | 10.8 V, 9000 mAh, rechargeable lithium battery |
| Operating Conditions | Temperature: 5°C -35°C / 41°F - 95°F, Relative humidity: 5-90% non-condensing |
| Storage Conditions | Temperature: 0°C -40°C / 32°F - 104°F, Relative humidity: 5-95% non-condensing |
| Safety | EN 61010-1:2010+A1:2019+AC:20, EN IEC 61326-1:2021, EN 61326-1:2013 |
| Warranty | 12 months (calculated from the date of product activation or six months after the date of manufacture, whichever comes first), laser-10 year warrantychrome.77settings7search |
