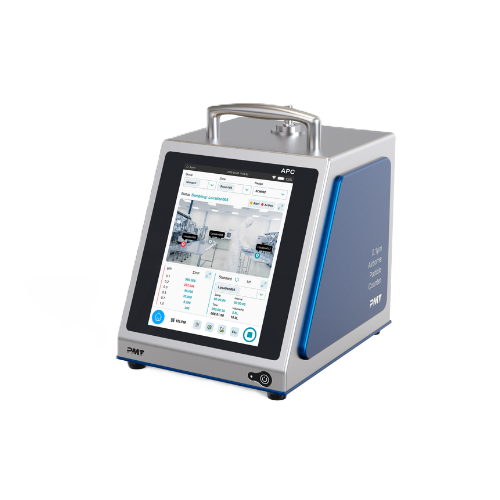

PMT® Airborne Particle Counter A030 - 0,1 µm (28.3LPM)
The PMT 0.1 µm Airborne Particle Counter A030 is a precision portable particle counter designed for continuous monitoring of cleanrooms and sensitive environments. With a 28.3 L/min airflow rate and six particle size channels from 0.1 µm to 5.0 µm, it reliably captures even the smallest particles and provides real-time concentration data. Its 8-inch capacitive touch display allows simultaneous visualization of concentration curves, sampling data, and measurement plans, while the internal memory stores extensive measurement records and automatically generates standard-compliant ISO, EU-GMP, China-GMP, and Fed-Std reports. Multi-level user management and audit trail functionality ensure full data integrity. The integrated HEPA filter guarantees clean exhaust, and communication options such as RJ45, USB, sensor hub, and optional Wi-Fi enable data transfer and remote access. The robust, portable design ensures reliability, performance, and flexibility for demanding monitoring tasks.
Technische Spezifikationen
| Particle Size Range | 0.1 µm to 10.0 µm |
| Size Channels | 0.1 µm, 0.2 µm, 0.3 µm, 0.5 µm, 1.0 µm, 5.0 µm |
| Count Efficiency | (50±20)% for 0.1 µm, (100±10)% for 0.15 µm (meets ISO 21501-4 and JIS B9921) |
| Flow Rate | 28.3 LPM±5% |
| Laser Source | Long life laser |
| Flow Rate Control | Closed-loop automatic control |
| Concentration Limit | 4,000,000 particles/ft³ at 10% coincidence loss |
| Zone/Location | 20,000 zones and 200,000 locations |
| Sampling Time | 1 second to 168 hours |
| Delay | 0 second to 99 hours 59 minutes 59 seconds |
| Cycles | 1000 samples in one location |
| Interval | 0 seconds to 99 hours 59 minutes 59 seconds |
| Sampling Mode | Manual, auto, cumulative count Σ/ differential count Δ or concentration |
| Zero Count | <1 count/5 min |
| Exhaust | Built-in HEPA filter, filter efficiency: >99.999%@0.1 µm |
| Display | 8″ LCD capacitive touch screen |
| Language | Chinese, English |
| Communication | RJ45, USB, SENSER-HUB, WIFI (Optional) |
| Reports | Compliant with ISO/EU GMP/CHINA GMP/Fed Std |
| Export File | PDF file or EXCEL file |
| Data Storage | 3.0GB, 5 million sample records |
| Data Security | Multi-level authority management, with audit trail capabilities |
| Data Reliability | Compliant with 21 CFR Part 11 |
| Auto or Off-line | |
| Alarm | Built-in alarm buzzer |
| Calibration Frequency | Recommend once a year |
| Dimensions (HxWxD) | 10x7.87x10.39 in/255x200x264 mm (with handle and foot mat) |
| Weight | 6.0Kg / 13.2 lbs (without battery), 7.0 Kg / 15.3 lbs (Incl. 2 batteries) |
| Enclosure | 316L stainless steel and anodized aluminum |
| Power | AC 100-240 V, 50 Hz/60 Hz |
| Operating Conditions | Temperature: 5°C -35°C / 41°F - 95°F, Relative humidity: 5-90% non-condensing |
| Storage Conditions | Temperature: 0°C -40°C / 32°F - 104°F, Relative humidity: 5-95% non-condensing |
| Safety | EN 61010-1:2010+A1:2019+AC:20, EN IEC 61326-1:2021, EN 61326-1:2013 |
| Warranty | 12 months (calculated from the date of product activation or six months after the date of manufacture, whichever comes first), laser-10 year warranty |
