APC/BAS dual mode Robot

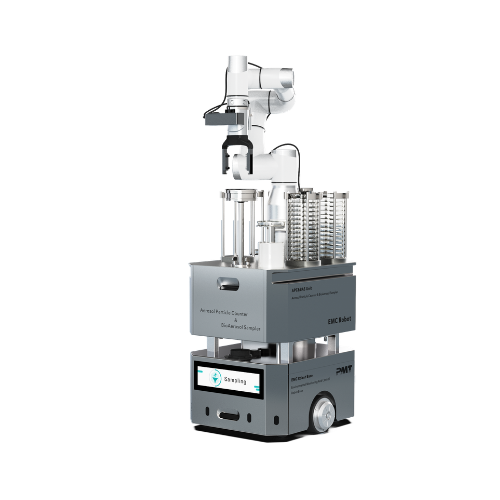

Airborne Particle Counter Sampler & BioAerosol Sampler Dual Mode Robot (APC/BAS dual mode Robot) enables automated sampling in cleanroomenvironments through a mobile active air sampler with robotic arm that can automatically place and remove agar plates. A SLAM* algorithm and LiDAR are used by the robot to ensure accurate site arrival and object avoidance. The unit can traverse designated areas ,automatically open and close doors, autonomously ride elevators, and return to home base for charging at a low battery level. Through automated sampling , the environmental impact of operators and potential for human error can be minimized. The APC/BAS dual mode Robot is equipped with a high precision 6-axis robotic arm and PMT control software which is easy to configure and use. The PMT control software is available on tablets , smartphones and PCs. Through a wireless connection , the software is used to communicate with the APC/BAS dual mode Robot, schedule tasks ,and assign work plans for the automated active air sampling of your controlled environments.
Specifications
| Base Diameter | 350×484×603mm |
| Net weight | 50kg (Incl. battery weight 14kg) |
| Maximum load | 40kg |
| Chassis | 316L stainless steel |
| Wheels | Polyurethane |
| Battery capacity | 960Wh (24V) |
| Working power | 50W (With full power, it can work continuously for 18h) |
| Charging time | 5h (220VAC,5A) |
| Battery life | ≥1,000 times |
| Communication | WIFI |
| Cleaning | Sealed chassis, resists corrosivity of disinfectant wiping |
| Maximum map area | 300,000 ㎡ |
| Ground resolution | 2cmx2cm |
| Cruising speed | up to 0.7m/s |
| Passable width | 800mm |
| Warranty | 24 months ( calculated from the date of product activation or six months after the date of manufacture, whichever comes first) |
