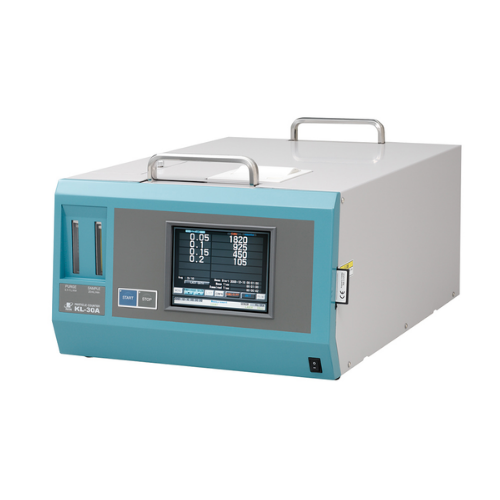

KL-30A
The KL-30 series is specifically designed for particle measurement in ultrapure water, detecting particles from 0.05 µm and providing a compact, fully integrated solution for demanding process monitoring applications. Each unit combines the sensor, controller, flow meter, and data storage within a single enclosure, minimizing installation requirements and simplifying system integration. An integrated leak sensor continuously monitors the device and triggers an automatic alarm in the event of an internal leak. The KL-30 series is engineered for high-pressure applications up to 500 kPa (overpressure), allowing flexible deployment across diverse process environments. Standard features include a D/A converter (4–20 mA) and alarm output contacts for easy connection to supervisory systems. A built-in printer enables direct output of measurement results, while a CompactFlash card (sold separately) provides additional options for data storage and backup. The KL-30 series delivers a robust, reliable, and user-friendly solution for online particle monitoring in ultrapure water, making it ideal for applications where reliability, data integrity, and seamless system integration are critical.
Specifications
| Optical system | Light-scattering method |
| Light source | Diode pumped solid state laser (wavelength 532 nm, rated output 500 mW ) |
| Laser product class | Class 1, IEC 60825-1 |
| Light detector | Silicon photodiode |
| Measurable sample types | Pure water (for purging, other fluids which do not corrode the fluid contact materials may be introduced) |
| Calibration | Polystyrene latex (PSL) particles (refractive index 1.6) in pure water |
| 4 channels (factory default) | ≥0.05 μm, ≥0.1 μm, ≥0.15 μm, ≥0.2 μm |
| User selectable channels | 2 to 10 channels |
| Setting range | 0.05 μm to 0.2 μm |
| Sampling flow rate | Flow rate 20 mL/min and purge flow rate 0.1 to 1 L/min combined (Purge flow rate will differ depending on sample fluid pressure) |
| Sample inlet/outlet | 4 x 6 (dia). or 3.96 x 6.35 (dia). flared joint for tube |
| Sample pressure range | 100 to 500 kPa (gauge pressure) |
| Sample temperature range | 15 ℃ to 35 ℃ (no condensation in flow system) |
| Materials of parts exposed to sample | Synthetic quartz, fluorocarbon rubber, fluoroplastic, PVC, Pyrex glass, SUS304/316, POM |
| Counting efficiency | 10 % ±3 % |
| Effective flow rate | 2 ±0.6 mL/min |
| Size resolution | 10 % or less (PSL particles in 0.15 μm range) |
| Maximum particle number concentration | 15 000 particles/mL (coincidence loss 10 %) |
| False count rate | Less than 0.01 particles/mL average |
| Purge air port | Rc 1/8 (1/8 PT female) For introducing purging gas to maintain clean conditions and prevent condensation |
| Environmental conditions for operation | 15 ℃ to 35 ℃, less than 80 % RH (no condensation) |
| Power | 130 VA, 100 to 240 V AC, 50/60 Hz |
| Dimensions and weight | 230 (H) x 385 (W) x 570 (D) mm (excluding protruding parts), approx. 24.8 kg |
| Accessories | Power cord (2.5 m) x 1, Thermal paper TP-08 x 2 rolls, CF Dummy card x 1 |
| Factory option | Purge air unit (for internal installation) KL-30-S21 |
| Options | Communication cable CC-61A/63A Thermal paper TP-08, Lint-free thermal paper TP-10 Sampling tube 5 m (4 x 6 dia., both ends flared) KL-30-S16 Sampling tube 10 m (4 x 6 dia., both ends flared) KL-30-S15 CompactFlash card MC-25CF2 (256 MB) |
