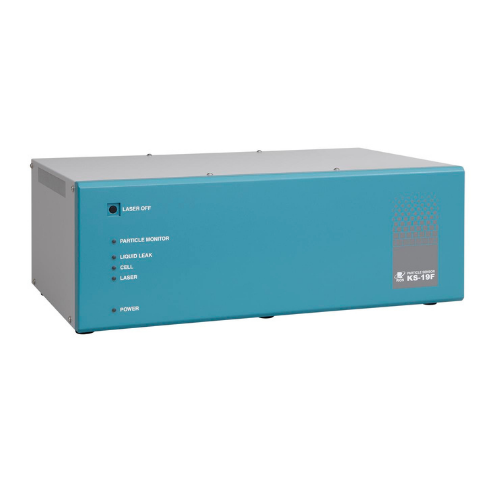

KS-19F – Particle measurement in ultra-pure chemistry
The KS-19F light-scattering particle counter is an advanced instrument designed for the counting and sizing of particles down to 30 nm (0.03 µm). This high-performance liquid particle counter is suitable for monitoring particles in both ultrapure chemicals and ultrapure water. Its exceptional performance is supported by sophisticated calibration concepts, ensuring highly accurate measurements across the full measurement range, including the smallest channel capable of detecting particles from 30 nm. The KS-19F features up to 10 particle size channels ranging from 30 to 130 nm, allowing detailed analysis of a broad spectrum of particle sizes. The instrument is equipped with an integrated leak sensor that triggers an alarm if a leak is detected, an important feature for ensuring operator safety during chemical measurements. Designed for the most demanding applications, the KS-19F supports both continuous online operation and batch processing. Its robustness and versatility make it ideal for monitoring particles in highly aggressive chemicals, including hydrofluoric acid, sulfuric acid, ammonium hydroxide, and hydrogen peroxide. With its precise particle counting capabilities and adaptability to extreme environments, the KS-19F is an essential tool for particle monitoring in the chemical and pharmaceutical industries, delivering reliable performance for critical contamination control and process monitoring applications.
Specifications
| Optical system | Light-scattering method |
| Light source | Diode pumped solid state laser (wavelength 532 nm, rated output 800 mW) |
| Laser product class | Class 1, IEC 60825-1 |
| Light detector | Silicon photodiode |
| Materials of parts exposed to sample | Sapphire, PFA |
| Calibration | Polystyrene latex (PSL) particles with refractive index 1.6 in pure water |
| Size range | 0.03 μm to 0.13 μm Freely settable 2 to 10 channels can be set with controller |
| Flow rate | 10 mL/min |
| Counting efficiency | 5 % ±1.5 % |
| Maximum particle number concentration | 40 000 particles/mL (coincidence loss is 10 % or less) |
| Sample pressure range | 300 kPa or less (gauge pressure) |
| Sample inlet / outlet | φ2 mm x φ4 mm flared joint for tube |
| Purge air port | One - touch type joint for φ6 mm tube |
| Controller | For connection of KE-40B1 |
| Liquid leak alarm | Alarm output terminal shorted during normal operation, connector open when internal leak is detected |
| Environmental conditions for operation | 15 °C to 35 °C, less than 80 %RH (no condensation) |
| Power | DC12 V (supplied from KE-40B1) |
| Dimensions and weight | 170 mm (H) x 487 mm (W) x 310 mm (D) (excluding protruding parts), approx. 13.5 kg |
| Supplied Accessories | Tube A vacuum pack x 1 (φ2 mm x φ4 mm, Flared PFA tube 1.5 m x 2, union joint x 1), Connection cable A (1 m) x 1 |
