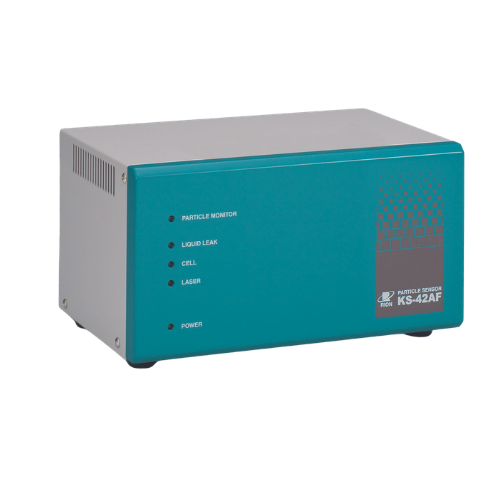

KS-42A (F) Particle Counter
The KS-42A(F) light-scattering particle counter is designed for the counting and sizing of particles in liquids within the 0.1 µm to 0.5 µm range. Depending on the model, parts in contact with the sample are made from quartz, sapphire, or PFA, allowing the instrument to handle highly aggressive chemicals such as hydrofluoric acid, sulfuric acid, ammonium hydroxide, and hydrogen peroxide. When connected to the KE-40B1 controller, the KS-42AF can form a complete particle counting system for liquid media, featuring five standard particle size channels (≥0.1 µm, ≥0.15 µm, ≥0.2 µm, ≥0.3 µm, ≥0.5 µm), with up to 10 channels fully configurable to meet specific analytical requirements.The KS-42A(F) includes an integrated leak sensor that triggers an alarm if a leak is detected, enhancing operator safety during chemical measurements. The system can be combined with a flow controller or sampler, enabling its use for continuous monitoring as well as laboratory batch testing. Its versatile design and precise measurement capabilities make the KS-42A(F) an ideal solution for particle analysis in aggressive chemical environments, supporting both process monitoring and quality assurance in highly controlled industrial and research applications.
Specifications
| Optical system | Light-scattering method |
| Light source | Laser diode (wavelength 830 nm, rated output 200 mW) |
| Laser product class | Class 1, IEC 60825-1 |
| Light detector | PIN type photodiode |
| Materials of parts exposed to sample | KS-42A: Synthetic quartz, PFA KS-42AF: Sapphire, PFA |
| Allowable sample type | Any liquid that does not corrode contacting materials |
| Calibration | Polystyrene latex (PSL) particles (refractive index 1.6) in pure water |
| 5 channels (factory default) | ≥0.1μm, ≥0.15μm, ≥0.2μm, ≥0.3μm, ≥0.5μm (≥1.0 μm support available as option) |
| User selectable channels | 1 channel to 10 channels, setting made from Controller |
| Setting range | 0.1μm and 0.13μm to 0.5μm |
| Counting efficiency | KS-42A: 70±15 % KS-42AF: 60±15 % |
| Flow rate | 10 mL/min |
| Maximum particle number concentration | 1200 particles/mL (at 5 % coincidence loss for 0.1μm particles) |
| Sample pressure range | 300 kPa (gauge pressure) or less |
| Sample inlet/outlet | 2 (dia.) x 4 (dia.) flared joint for tube |
| Purge air port | Rc1/8 (1/8 PT female screw) |
| CONTROLLER connector | Connecting to KE-40B1 |
| LIQUID LEAK /ALARM connector | Alarm output terminal shorted during normal operation, open when internal leak is detected |
| Power | DC12 V (supplied by KE-40B1) |
| Environmental conditions for operation | +15 ˚C to +35 ˚C, less than 85 % RH (no condensation) |
| Dimensions and weight | 125(H) × 240 (W) × 151(D) mm (excluding protrusions), Approx. 4 kg |
| Accessories | Tube A vacuum pack x 1 (2 x 4 dia. PFA tube with flared joint at one end, 1.5 m x 2, Union joint x 1), Connection cable A (1 m) x 1 |
| Option | Connection cable B (5 m) KS-42-123 |
