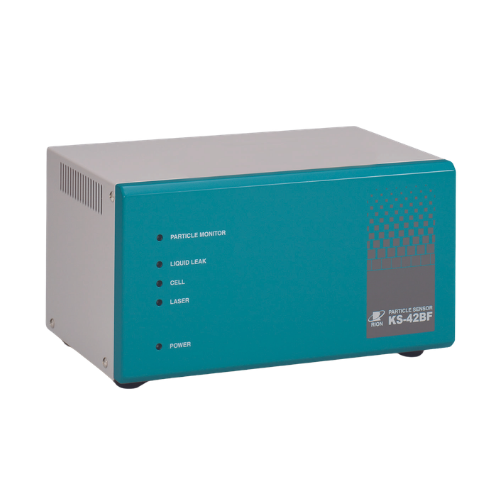

KS-42B (F) Particle Counter
The KS-42B(F) light-scattering particle counter is designed for counting and sizing particles in liquids within the 0.2 µm to 2 µm range. Depending on the model version, sample-contacting components are made from quartz, sapphire, or PFA, allowing the instrument to handle highly aggressive chemicals such as hydrofluoric acid, sulfuric acid, ammonium hydroxide, and hydrogen peroxide. When connected to the KE-40B1 controller, the KS-42B(F) can form a complete particle counting system for liquid media, featuring five standard particle size channels (≥0.2 µm, ≥0.3 µm, ≥0.5 µm, ≥1 µm, ≥2 µm), with up to 10 channels fully configurable for specific analytical requirements. The KS-42B(F) includes an integrated leak sensor that triggers an alarm if a leak is detected, enhancing operator safety during chemical measurements. By integrating with a flow controller or sampler, the device can be used for both continuous monitoring and laboratory batch testing. Its precise particle sizing, robust design, and chemical resistance make the KS-42B(F) an ideal solution for particle monitoring in aggressive chemical environments, supporting process control, quality assurance, and research applications in industrial and laboratory settings.
Specifications
| Optical system | Light-scattering method |
| Light source | Laser diode (wavelength 780 nm, rated output 40 mW) |
| Laser product class | Class 1, IEC 60825-1 |
| Light detector | PIN type photodiode |
| Materials of parts exposed to sample | KS-42B: Synthetic quartz, PFA, PTFE KS-42BF: Sapphire, PFA, PTFE |
| Allowable sample type | Any liquid that does not corrode contacting materials |
| Calibration | Polystyrene latex (PSL) particles (refractive index 1.6) in pure water |
| 5 channels (factory default) | ≥0.2μm, ≥0.3μm, ≥0.5μm, ≥1.0μm, ≥2.0μm |
| User selectable channels | 1 channel to 10 channels, setting made from Controller |
| Setting range | 0.2μm to 2.0μm |
| Counting efficiency | KS-42B, KS-42BF: 70 % to 110 % |
| Flow rate | 10 mL/min |
| Maximum particle number concentration | 1 200 particles/mL (at 5 % coincidence loss for 0.2μm particles) |
| Sample temperature range | +15 ˚C to +35 ˚C (no condensation in the cell part) |
| Sample pressure range | 300 kPa (gauge pressure) or less |
| Sample inlet/outlet | 2 (dia.) x 4 (dia.) flared joint for tube |
| Purge air port | Rc1/8 (1/8 PT female screw) |
| CONTROLLER connector | Connecting to KE-40B1 |
| LIQUID LEAK / ALARM connector | Alarm output terminal shorted during normal operation, open when internal leak is detected |
| Power | DC12 V (supplied by KE-40B1) |
| Environmental conditions for operation | +15 ˚C to +35 ˚C, less than 85 % RH (no condensation) |
| Dimensions and weight | 125(H) × 240 (W) × 151(D) mm (excluding protrusions), Approx. 3.2 kg |
| Accessories | Tube A vacuum pack x 1 (2 x 4 dia. PFA tube with flared joint at one end, 1.5 m x 2, Union joint x 1), Connection cable A (1 m) x 1 |
| Option | Connection cable B (5 m) KS-42-123 |
