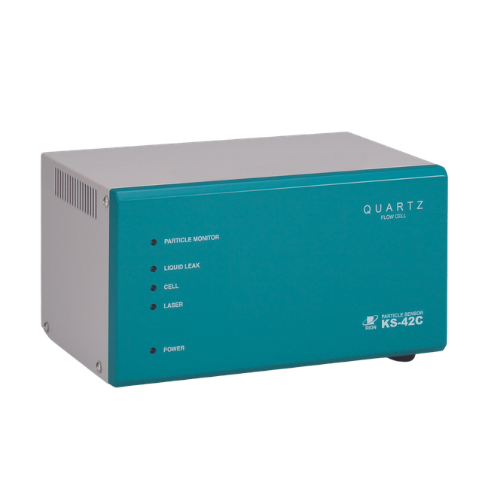

KS-42C Particle Counter
The KS-42C light-scattering particle counter is designed for counting and sizing particles in liquids within the 0.5 µm to 20 µm range. Sample-contacting components are constructed from quartz and PFA. Unlike the KS-42A and KS-42B models, the KS-42C is not available with a sapphire measurement cell. When connected to the KE-40B1 controller, the KS-42C can form a complete particle counting system for liquid media, featuring seven standard particle size channels (≥0.5 µm, ≥1 µm, ≥2 µm, ≥3 µm, ≥5 µm, ≥10 µm, ≥20 µm), with up to 10 fully configurable channels to meet specific analytical needs.The KS-42C includes an integrated leak sensor that triggers an alarm if a leak is detected, providing enhanced operator safety during chemical measurements. By connecting the system to a flow controller or sampler, the device can be used for both continuous monitoring and laboratory batch testing. Its robust construction, broad measurement range, and precise particle detection make the KS-42C an ideal solution for particle monitoring in demanding chemical and pharmaceutical environments, supporting process control, quality assurance, and laboratory applications.
Specifications
| Optical system | Light-scattering method |
| Light source | Laser diode (wavelength 780 nm, rated output 5 mW) |
| Laser product class | Class 1, IEC 60825-1 |
| Light detector | PIN type photodiode |
| Materials of parts exposed to sample | Synthetic quartz, PFA, PTFE |
| Allowable sample type | Any liquid that does not corrode contacting materials |
| Calibration | Polystyrene latex (PSL) particles (refractive index 1.6) in pure water |
| 7 channels (factory default) | ≥0.5μm, ≥1μm, ≥2μm, ≥3μm, ≥5μm, ≥10μm, ≥20μm |
| User selectable channels | 1 channel to 10 channels, setting made from Controller |
| Setting range | 0.5μm to 20μm |
| Counting efficiency | 70 % to 110 % |
| Flow rate | 10 mL/min |
| Maximum particle number concentration | 1200 particles/mL (at 5 % coincidence loss for 0.5μm particles) |
| Sample pressure range | 300 kPa (gauge pressure) or less |
| Sample inlet/outlet | 2 (dia.) x 4 (dia.) flared joint for tube |
| Purge air port | Rc1/8 (1/8 PT female screw) |
| CONTROLLER connector | Connecting to KE-40B1 |
| LIQUID LEAK/ALARM connector | Alarm output terminal shorted during normal operation, open when internal leak is detected |
| Power | DC12 V (supplied by KE-40B1) |
| Environmental conditions for operation | +15 ˚C to +35 ˚C, less than 80 % RH (no condensation) |
| Dimensions and weight | 125(H) × 240 (W) × 151(D) mm (excluding protrusions), Approx. 3 kg |
| Accessories | Tube A vacuum pack x 1 (2 x 4 dia. PFA tube with flared joint at one end, 1.5 m x 2, Union joint x 1), Connection cable A (1 m) x 1 |
| Option | Connection cable (5 m) KS-42-123 |
