PMT® Airborne Particle Counter - mini (28.3LPM ) - A230

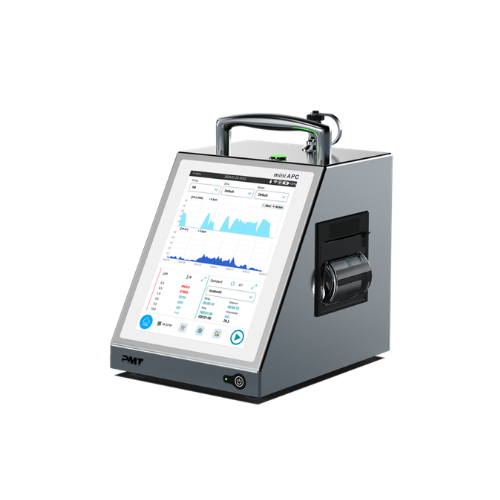

The Portable Airborne Particle Counter MINI APC is a compact and robust aerosol particle counter with a weight of only 4.2 kg (without battery). It has been specifically designed for demanding cleanroom applications and stands out for its durable construction. The device features a resistant 316L stainless steel housing, ensuring high compatibility with commonly used disinfectants making it ideal for environments with strict hygiene requirements. Equipped with a high-quality laser backed by a 10-year manufacturer warranty, the particle counter delivers reliable performance and long operating life with minimal maintenance. The 8-inch LCD touchscreen enables intuitive operation and provides clear real-time visualization of measurement results including the ability to up load facility maps and images with sample points for repeatable sampling. To meet regulatory requirements, the device includes a multi-level user access management system with audit trail functionality and complies with FDA 21 CFR Part 11 guidelines and can produce reports that comply with ISO/EU GMP /CHINESE GMP/Fed Std. These features make the Mini APC an optimal solution for quality-critical particle monitoring in GMP-regulated environments. Compliant to ISO 14644-1, ISO 14644-2, EU GMP and Annex1 as well as the calibration standard ISO 21501-4. The Mini APC is available in different flow rate configurations: 28.3 L/min, 50 L/min, 100 L/min, as well as a dual-flow version (28.3 LPM & 100 LPM or 50.0 LPM & 100 LPM).
Specifications
100LPM - A210
| Model A210 | Details |
|---|---|
| Flow Rate (Ambient Air) | 100 LPM ±3% |
| Flow Rate (Pressurized Gas) | 100 LPM ±5% (CO₂ not supported) |
| Size Range | 0.5 µm to 25 µm |
| Size Channels | 0.5 / 1.0 / 2.0 / 3.0 / 5.0 / 10.0 µm |
| Size Resolution | <15% @ 0.5 µm (ISO 21501-4:2018) |
| Counting Efficiency | 50% ±20% at 0.5 µm, 100% ±10% for particles >0.75 µm |
| Concentration Limit | 560,000 particles/ft³ @ 10% coincidence loss |
| Laser Source | Long life laser |
| Zero Count | <1 count/5 minutes |
| Exhaust | Internal HEPA Filter(>99.999% @ 0.3µm) |
| Zone/Location | 20,000 zones and 200,000 locations |
| Max power consumption | AC 90W |
| Safety | FCC Part 15, Subpart B, EN 61010-1: 2010+A1:2019, EN 61326-1:2013, EN 61326-2-2:2013, EN 61000-6-1:2007, EN 61000-6-3:2007+A1, EN 60825-1:2014 |
| Sampling Mode | Manual, auto, beep |
| Sampling Time | 1 second to 168 hours |
| Cycles | 1-1000 on one location |
| Communication | RJ45/USB/SENSOR-HUB/WIFI |
| Data Storage | 2.5GB, 5 million sample records |
| Alarm | Audible built-in alarm, external sound and light alarm |
| Display | 8"LCD capacitive touch screen |
| Languages | English, Chinese |
| Data Security | Authority management, default authority include admin, supervisor and operator, customized authority available |
| Data Reliability | Compliant with FDA 21 CFR Part 11 |
| Reports | Compliant with ISO/EU GMP/CHINESE GMP/Fed Std |
| Printer | Built-in thermal printer, support external printer |
| Enclosure | 316L Stainless Steel |
| Power | AC 100-240V, 50 Hz/60 Hz |
| Battery | 10.8V, 9000mAhx2 rechargeable lithium battery |
| Battery endurance | Running for 6 hours
|
| Operation Condition | 5-35℃(41-95℉), 5-90% RH non-condensing |
| Storage Condition | 0-40℃(32-104℉), 5-95% RH non-condensing |
| Dimensions(HxWxD) /Weight | 9.37 x 6.69 x 8.66 in/238 x 170 x 220 mm, 4.2kg/9.26lbs (without battery) 5.2kg/11.46lbs (with 2 batteries |
| Warranty | 24 months (calculated from the date of product activation or six months after the date of manufacture, whichever comes first) |
50LPM - A220
| 50LPM | Eigenschaften |
|---|---|
| Flow Rate | Ambient air: 50LPM±3% Compressed gas: 50LPM±5% |
| Size Range | 0.3µm to 25µm |
| Size Channel | 0.3, 0.5, 1.0, 3.0, 5.0, 10.0µm |
| Size Resolution | <15% @ 0.5µm (meets ISO 21501-4:2018) |
| Count Efficiency | 50%±20% for 0.3µm, 100%±10% for >0.45µm (meets ISO 21501-4:2018 and JIS B9921:2010 ) |
| Concentration Limit | 840,000 particles/ft³at 10% coincidence loss |
| Laser Source | Long life laser |
| Zero Count | <1 count/5 minutes |
| Exhaust | Internal HEPA Filter(>99.999% @ 0.3µm) |
| Zone/Location | 20,000 zones and 200,000 locations |
| Max power consumption | AC 90W |
| Safety | FCC Part 15, Subpart B, EN 61010-1: 2010+A1:2019, EN 61326-1:2013, EN 61326-2-2:2013, EN 61000-6-1:2007, EN 61000-6-3:2007+A1, EN 60825-1:2014 |
| Sampling Mode | Manual, auto, beep |
| Sampling Time | 1 second to 168 hours |
| Cycles | 1-1000 on one location |
| Communication | RJ45/USB/SENSOR-HUB/WIFI |
| Data Storage | 2.5GB, 5 million sample records |
| Alarm | Audible built-in alarm, external sound and light alarm |
| Display | 8"LCD capacitive touch screen |
| Languages | English |
| Data Security | Authority management, default authority include admin, supervisor and operator, customized authority available |
| Data Reliability | Compliant with FDA 21 CFR Part 11 |
| Reports | Compliant with ISO/EU GMP/CHINESE GMP/Fed Std |
| Printer | Built-in thermal printer, support external printer |
| Enclosure | 316L Stainless Stee |
| Power | AC 100-240V, 50 Hz/60 Hz |
| Battery | 10.8V, 9000mAhx2 rechargeable lithium battery |
| Battery endurance | Running for 8.5 hours |
| Operation Condition | 5-35℃(41-95℉), 5-90% RH non-condensin |
| Storage Condition | 0-40℃(32-104℉), 5-95% RH non-condensing |
| Dimensions(HxWxD) /Weight | 9.37 x 6.69 x 8.66 in/238 x 170 x 220 mm, 4.2kg/9.26lbs (without battery) 5.2kg/11.46lbs (with 2 batteries |
| Warranty | 24 months (calculated from the date of product activation or six months after the date of manufacture, whichever comes first) |
28.3LPM - A230
| 28.3 LPM | Details |
|---|---|
| Flow Rate | Ambient air: 28.3 LPM ±3% Compressed gas: 28.3 LPM ±5% |
| Size Range | 0.3 µm to 25 µm |
| Size Channel | 0.3, 0.5, 1.0, 3.0, 5.0, 10.0µm |
| Size Resolution | <15% @ 0.5µm (meets ISO 21501-4:2018) |
| Count Efficiency | 50%±20% for 0.3µm, 100%±10% for>0.45µm (meets ISO 21501-4:2018 and JIS B9921:2010 ) |
| Concentration Limit | 1,400,000 particles/ft³at 10% coincidence loss |
| Laser Source | Long life laser |
| Zero Count | <1 count/5 minutes |
| Exhaust | Internal HEPA Filter(>99.999% @ 0.3µm) |
| Zone/Location | 20,000 zones and 200,000 locations |
| Max power consumption | AC 90W |
| Safety | FCC Part 15, Subpart B, EN 61010-1: 2010+A1:2019, EN 61326-1:2013, EN 61326-2-2:2013, EN 61000-6-1:2007, EN 61000-6-3:2007+A1, EN 60825-1:2014 |
| Sampling Mode | Manual, auto, beep |
| Sampling Time | 1 second to 168 hours |
| Cycles | 1-1000 on one location |
| Communication | RJ45/USB/SENSOR-HUB/WIFI |
| Data Storage | 2.5GB, 5 million sample records |
| Alarm | Audible built-in alarm, external sound and light alarm |
| Display | 8"LCD capacitive touch screen |
| Languages | English |
| Data Security | Authority management, default authority include admin, supervisor and operator, customized authority available |
| Data Reliability | Compliant with FDA 21 CFR Part 11 |
| Reports | Compliant with ISO/EU GMP/CHINESE GMP/Fed Std |
| Printer | Built-in thermal printer, support external printer |
| Enclosure | 316L Stainless Stee |
| Power | AC 100-240V, 50 Hz/60 Hz |
| Battery | 10.8V, 9000mAhx2 rechargeable lithium battery |
| Battery endurance | Running for 6.5 hours |
| Operation Condition | 5-35℃(41-95℉), 5-90% RH non-condensin |
| Storage Condition | 0-40℃(32-104℉), 5-95% RH non-condensing |
| Dimensions(HxWxD) /Weight | 9.37 x 6.69 x 8.66 in/238 x 170 x 220 mm, 4.2kg/9.26lbs (without battery) 5.2kg/11.46lbs (with 2 batteries |
| Warranty | 24 months (calculated from the date of product activation or six months after the date of manufacture, whichever comes first) |
Dual Flow 28.3 and 100LPM - A240
| 28.3 and 100LPM - A240 | Details |
|---|---|
| Flow Rate | 100 LPM±5% 28.3 LPM±5% |
| Flow Rate Control | Built-in mass flow meter, automatic closed-loop |
| Size Range | 0.5 µm to 25 µm |
| Size Channels | 0.5 µm, 1.0 µm, 2.0 µm, 3.0 µm, 5.0 µm, 10.0 µm |
| Size Resolution | <15% @ 0.5 µm (meets ISO 21501-4) |
| Count Efficiency | 50% ±20% for 0.5 µm, 100% ±10% for >0.75 µm (meets ISO 21501-4 and JIS B9921) |
| Concentration Limit | 560,000 particles/ft³at 10% coincidence loss |
| Laser Source | Long life laser |
| Zero Count | <1 count/5 min |
| Exhaust | Built-in HEPA filter, filter efficiency:＞99.999% @0.3 μm |
| Room/Location | 20,000 rooms and 200,000 locations |
| Sampling Mode | Manual, auto, beep |
| Sampling Time | 1 second to 168 hours |
| Cycles | 1000 cycles per location |
| Communication | RJ45, USB, SENSER-HUB, WIFI |
| Data Storage | 2.5GB, 5,000,000 sets of sample data can be stored |
| Alarm | Built-in alarm buzzer with alarm light, external sound and light alarm |
| Display | 8" LCD capacitive touch screen |
| Language | Chinese, English |
| Data Security | Authority management, default levels include sysadmin, administrator, supervisor and operator, customized authority available |
| Data Reliability | Compliant with 21 CFR Part 11 |
| Reports | Compliant with ISO/EUGMP/CHINESEGMP/Fed Std |
| Printer | Built-in thermal printer, external printer connection supported |
| Calibration Frequency | Recommend once a year |
| Dimensions | H238xW170xD220 mm / H9.37xW6.69xD8.66 in |
| Weight | 4.2kg / 9.26 lbs (without battery), 5.2 kg / 11.46 lbs (Incl. 2 batteries) |
| Enclosure | 316L stainless steel |
| Power | AC 100-240 V, 50 Hz / 60 Hz |
| Battery | 10.8V, 9000mAhx2 rechargeable lithium battery |
| Working Endurance | 100 LPM: 6 hours of sampling time 28.3 LPM: 12 hours of sampling time |
| Max Power Consumption | AC 90W |
| Operation Conditions | Temperature: 5°C -35°C / 41°F - 95°F, Relative humidity: 5-90% non-condensing |
| Storage Conditions | Temperature: 0°C -40°C / 32°F - 104°F, Relative humidity: 5-95% non-condensing |
| Safety | EN 61010-1:2010+A1:2019+AC:2019, EN 61326-1:2013, EN IEC 61326-1:2021 |
| Warranty | 24 months (calculated from the date of product activation or six months after the date of manufacture, whichever comes first) |
Model: Dual Flow 50 and 100LPM - A242
| 50 and 100LPM - A240 | Details |
|---|---|
| Flow Rate | 100 LPM±5% 50 LPM±5% |
| Flow Rate Control | Built-in mass flow meter, automatic closed-loop |
| Size Range | 0.5 µm to 25 µm |
| Size Channels | 0.5 µm, 1.0 µm, 2.0 µm, 3.0 µm, 5.0 µm, 10.0 µm |
| Size Resolution | <15% @ 0.5 µm (meets ISO 21501-4) |
| Count Efficiency | 50% ±20% for 0.5 µm, 100% ±10% for >0.75 µm (meets ISO 21501-4 and JIS B9921) |
| Concentration Limit | 560,000 particles/ft³at 10% coincidence loss |
| Laser Source | Long life laser |
| Zero Count | <1 count/5 min |
| Exhaust | Built-in HEPA filter, filter efficiency:＞99.999% @0.3 μm |
| Room/Location | 20,000 rooms and 200,000 locations |
| Sampling Mode | Manual, auto, beep |
| Sampling Time | 1 second to 168 hours |
| Cycles | 1000 cycles per location |
| Communication | RJ45, USB, SENSER-HUB, WIFI |
| Data Storage | 2.5GB, 5,000,000 sets of sample data can be stored |
| Alarm | Built-in alarm buzzer with alarm light, external sound and light alarm |
| Display | 8" LCD capacitive touch screen |
| Language | Chinese, English |
| Data Security | Authority management, default levels include sysadmin, administrator, supervisor and operator, customized authority available |
| Data Reliability | Compliant with 21 CFR Part 11 |
| Reports | Compliant with ISO/EUGMP/CHINESEGMP/Fed Std |
| Printer | Built-in thermal printer, external printer connection supported |
| Calibration Frequency | Recommend once a year |
| Dimensions | H238xW170xD220 mm / H9.37xW6.69xD8.66 in |
| Weight | 4.2kg / 9.26 lbs (without battery), 5.2 kg / 11.46 lbs (Incl. 2 batteries) |
| Enclosure | 316L stainless steel |
| Power | AC 100-240 V, 50 Hz / 60 Hz |
| Battery | 10.8V, 9000mAhx2 rechargeable lithium battery |
| Working Endurance | 100 LPM: 6 hours of sampling time 50 LPM: 9 hours of sampling time |
| Max Power Consumption | AC 90W |
| Operation Conditions | Temperature: 5°C -35°C / 41°F - 95°F, Relative humidity: 5-90% non-condensing |
| Storage Conditions | Temperature: 0°C -40°C / 32°F - 104°F, Relative humidity: 5-95% non-condensing |
| Safety | EN 61010-1:2010+A1:2019+AC:2019, EN 61326-1:2013, EN IEC 61326-1:2021 |
| Warranty | 24 months (calculated from the date of product activation or six months after the date of manufacture, whichever comes first) |
