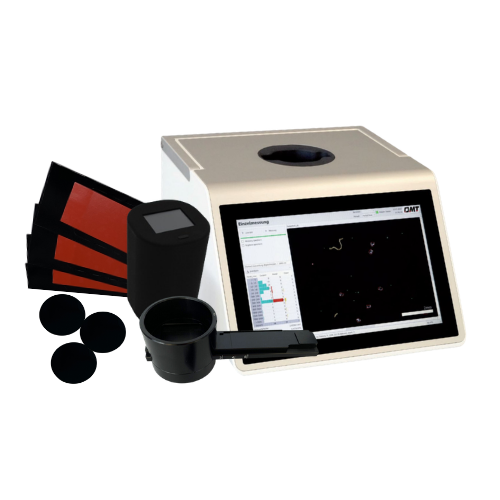

PartSens 4.0 – Portable Surface Particle Counter

The PartSens 4.0 device is a portable measuring system with a wireless measuring head for direct measurement of impurities on surfaces. The PartSens 4.0 differentiate between metallic and non-metallic particles and fibres on surfaces. Mobile design and easy operation make this instrument the perfect solution for companies that want to verify the cleanliness of surfaces.

The use of glancing light technology according to ISO 14664-9* allows for reproducible and highly accurate measurement results. Using the PartSens eliminates complex sampling by gas extraction and subjective measuring methods such as microscopy or faulty multi-stage procedures such as surface rinsing and subsequent filter analysis.

PartSens determines particle size and the number of particles directly. The measurement result – including the live image – is immediately displayed on the instrument via wireless transmission. For data archiving or later comparison, the data is stored in the particle counter and can be uploaded as a csv-file on a USB stick or printed out via an external printer.

The Partsens 4.0 is applicable for cleanroom standards such as ISO 14644-9, ISO 14644-17 and ISO 14644-5 as well. It can also be used in the Aerospace industry For PFO (Particle Fall-Out) according to ECSS-Q-ST-70-50C.

  • The live image allows the detection of particles.
  • The system can be used on various surface materials such as stainless, silicon, glass and plastic.

Accessories

  • TapeLift Pad / TapeLift Stripe / TapeLift ParticleTrap

    The TapeLift product family includes a range of solutions, including the TapeLift Pad, the TapeLift Stripe and the TapeLift ParticleTrap – in addition to customized products manufactured to customer specifications. TapeLift media is optimized for the analysis of particles using oblique light in the PartSens 4.0 system. A dark and uniform surface is the optimal condition for precise and reliable analysis. TapeLift Pads, TapeLift Stripes and TapeLift ParticleTraps are made of the same material. These are hydrocarbon compounds of different lengths and complexities that form a colloidal matrix. This matrix is located on a flexible carrier. The matrix is non-toxic and does not contain silanes and siloxanes, halogen-containing or other REACH-relevant compounds, including PFAS. Analyses have not detected any metal atoms or heavy metal ions. The matrix is ESD-neutral and electrostatically dissipative.

    Download brochure
Direct mesurement
Direct transfer method with TapeLift Pad
PartSens 4.0 : Particle trap method
PartSense 4.0 in combination with C/PS2

FAQ

The PartSens 4.0 device is a portable measurement system with a wireless sensor head for the direct measurement of particles on surfaces.

  • What additional functions does the PartSens+ 4.0 model offer?

    The PartSens+ 4.0 model offers additional options for distinguishing between metallic and non-metallic particles

  • How is the data stored and output?

    The data is stored in the particle counter for archiving or for later comparison measurements. Optionally, the measurement result can be output to an external printer.

  • What are the technical specifications of the PartSens+ 4.0?
    • Measurement principle according to ISO 14644-9
    • Size range from < 5 µm to > 3000 µm
    • Particle analysis: size and quantity of non-metallic particles, metallic particles, and fibers
    • Particle size classification according to VDA 19 Part 2 or ISO 16232
    • Camera measurement area: 19.36 mm x 13.82 mm
    • Active measurement area: 2.68 cm²
    • Measurement duration: < 10 seconds
    • Data output and live image on a 12.1” TFT touchscreen display
    • Data storage capacity: 300 measurements
    • USB Type-A interface for data backup
    • HDMI interface for connecting an external monitor
