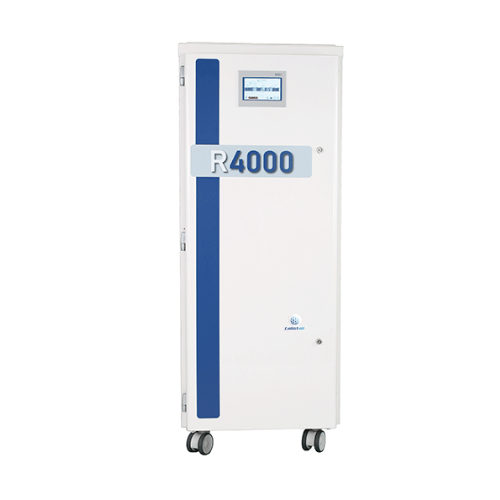

Calistair R4000
With the mobile R4000 you acquire an air decontamination system for the different particulate cleanliness requirements of your health facility, cleanroom or laboratory. It has been produced to the ISO 14644 and NF S90-351 standards. The R4000 is low maintenance and was designed especially for risk areas 2 and 3. With a noise level below 50 dB at 1500 m³/h, the R4000 operates extremely quietly and is therefore ideally suitable for a large number of hospital areas, cleanrooms or labs. For example, thanks to the quiet running of the R4000, communication in the OP is ensured just as reliably as maximum peace and quiet in the wards or intensive care area. The R4000 relieves your hospital budget, because the mobile air decontamination system has been proven to operate economically and it is not difficult to install.
- Separation and destruction of microbiological, chemical and particulate pollutants
- Air flow rate up to 4000 m³/h
- Conformity for air-conditioned rooms up to ISO 5 according to the NF S90-351 standard
- Airborne risk management
- Minimisation of odour nuisance due to proven, recognised mechanisms
- Cost-efficient thanks to low-energy technology
- Maximum quiet running thanks to low noise level
- State-of-the-art technology based on automated control and performance analysis by integrated PLC
Specification
| Description |
| Destruction of contaminants by non-thermal catalysis |
| Zone 3 and zone 2 compliant (ISO 7 and ISO 8) |
| Surface area of the zone to treat: 20 to 150 m2 |
| Maintenance in less than 10 min |
| Easy biocleaning |
| Filters suitable for incineration |
| Very quiet |
| Technical characteristics |
| Flow rate: 800 to 4000 m3/h |
| Available pressure: 450 Pa |
| Volume of the zone to be treated: 50 to 400 m3 |
| Double-skin panelling, thickness 40 mm |
| Stainless steel, painted in RAL 9010 |
| Mineral wool acoustic insulation 90 kg/m3 |
| Electronically switched electric fan and dedicated pressure probe |
| Constant air flow control according to the clogging of the filters |
| G4 pre-filter and F8 fine filter mounted on rails |
| H14 terminal filter with tightening cam and pressure gauge |
